Security teams inherit years of orphaned accounts, mismatched roles, and undocumented exceptions. Auditors ask for evidence that doesn't exist. Gartner's IAM hygiene research points to poor processes, misconfigurations, and identity-data quality as the real risk drivers, not missing technology, according to its 2024 IAM hygiene research.
This guide breaks down the core IAM design principles and a practical roadmap for putting them into practice, including where requirements gathering typically stalls and how to fix it.
Key Takeaways
- Base IAM design on least privilege, Zero Trust, and layered RBAC/ABAC models
- Clear requirements gathering matters more than which vendor you pick
- A phased roadmap (assess, design, pilot, roll out, govern) cuts risk and speeds delivery
- Prevent scope creep and stakeholder misalignment with structured discovery
Core Identity and Access Management Design Principles
Least Privilege
Least privilege means users get only the access needed for their specific task, nothing more. NIST's Zero Trust Architecture publication frames this as limiting privileges to the minimum actions required, whether read, write, or delete.
Put it into practice with:
- Just-in-time (JIT) provisioning: grant elevated access only for the duration needed
- Periodic access reviews: remove standing entitlements nobody uses
- Entitlement-level definitions: set permissions at the action level, not the application level
Zero Trust Architecture
Zero Trust flips the old assumption that anything inside the corporate network is safe. NIST defines it as an approach where trust is never implicit and access decisions are continually re-evaluated.
In practice, this means every access request gets checked against identity, device posture, resource sensitivity, and context, such as location or time of day, before anything is granted. Don't treat Zero Trust as a single product rollout. NIST recommends implementing it use case by use case.

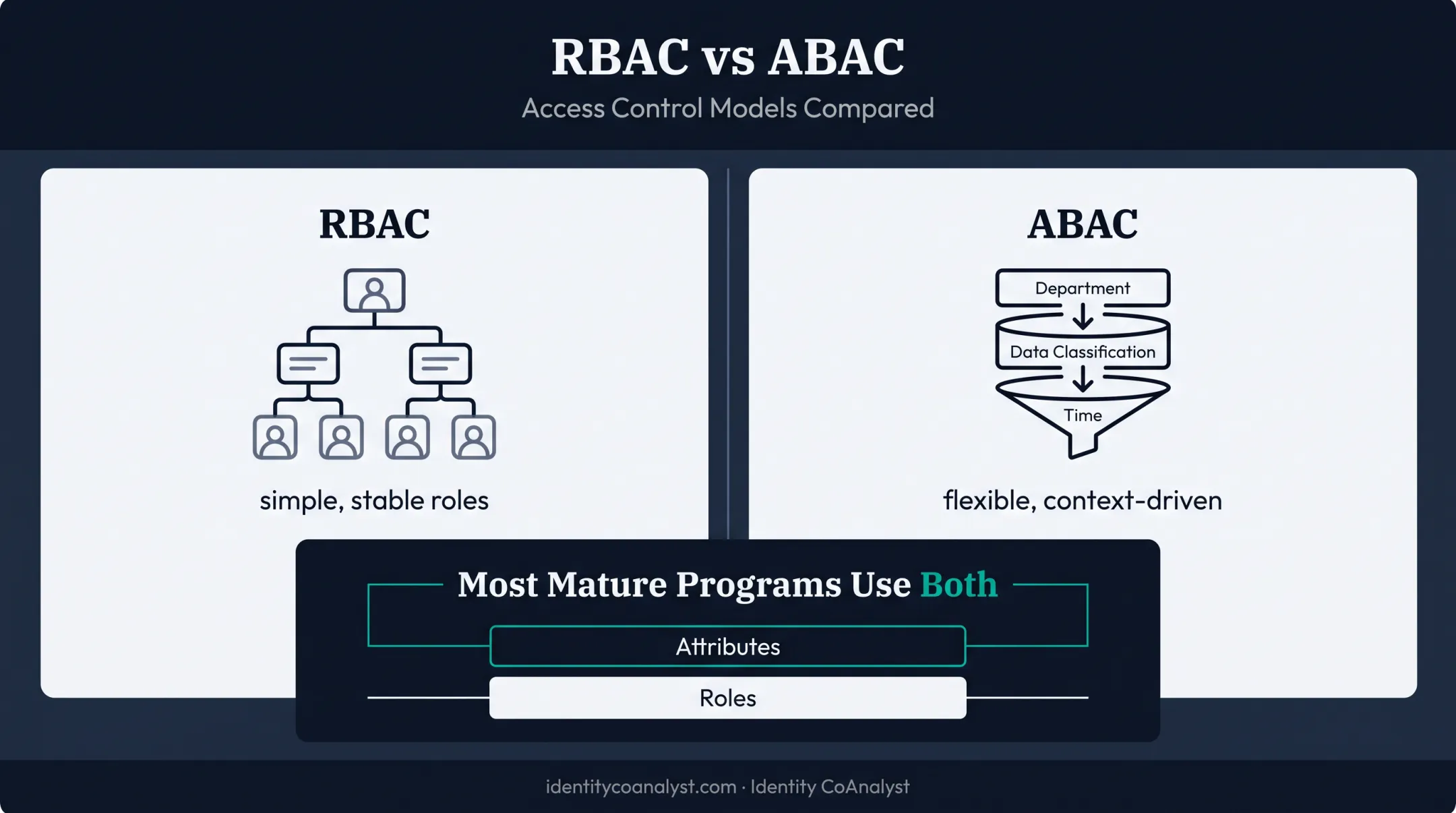

Separation of Duties and RBAC/ABAC
No single person should control an entire sensitive process, like initiating and approving a payment. That's separation of duties (SoD), and it's typically enforced through a combination of two access models:
- RBAC (role-based access control): assigns permissions based on job function. Simple to audit, best for stable roles.
- ABAC (attribute-based access control): grants access based on attributes like department, data classification, or time of day. More flexible, but harder to manage at scale.
Most mature programs use both. Roles establish a baseline; attributes add context-driven restrictions on top.
Centralized Identity Governance
Fragmented identity systems, one for HR, another for contractors, a third for cloud apps, create blind spots. Centralized governance manages the full joiner-mover-leaver lifecycle from one authoritative source, so access changes automatically when someone changes roles or leaves.
Without it, you get orphaned accounts, duplicate identities, and access that nobody remembers granting.
Auditability and Accountability
Build logging and monitoring into the design from day one, not as an afterthought before an audit. CISA and NSA identity guidance places segregation of duties, logging, access review, and analytics together as core identity governance components, per their identity and access management guidance.

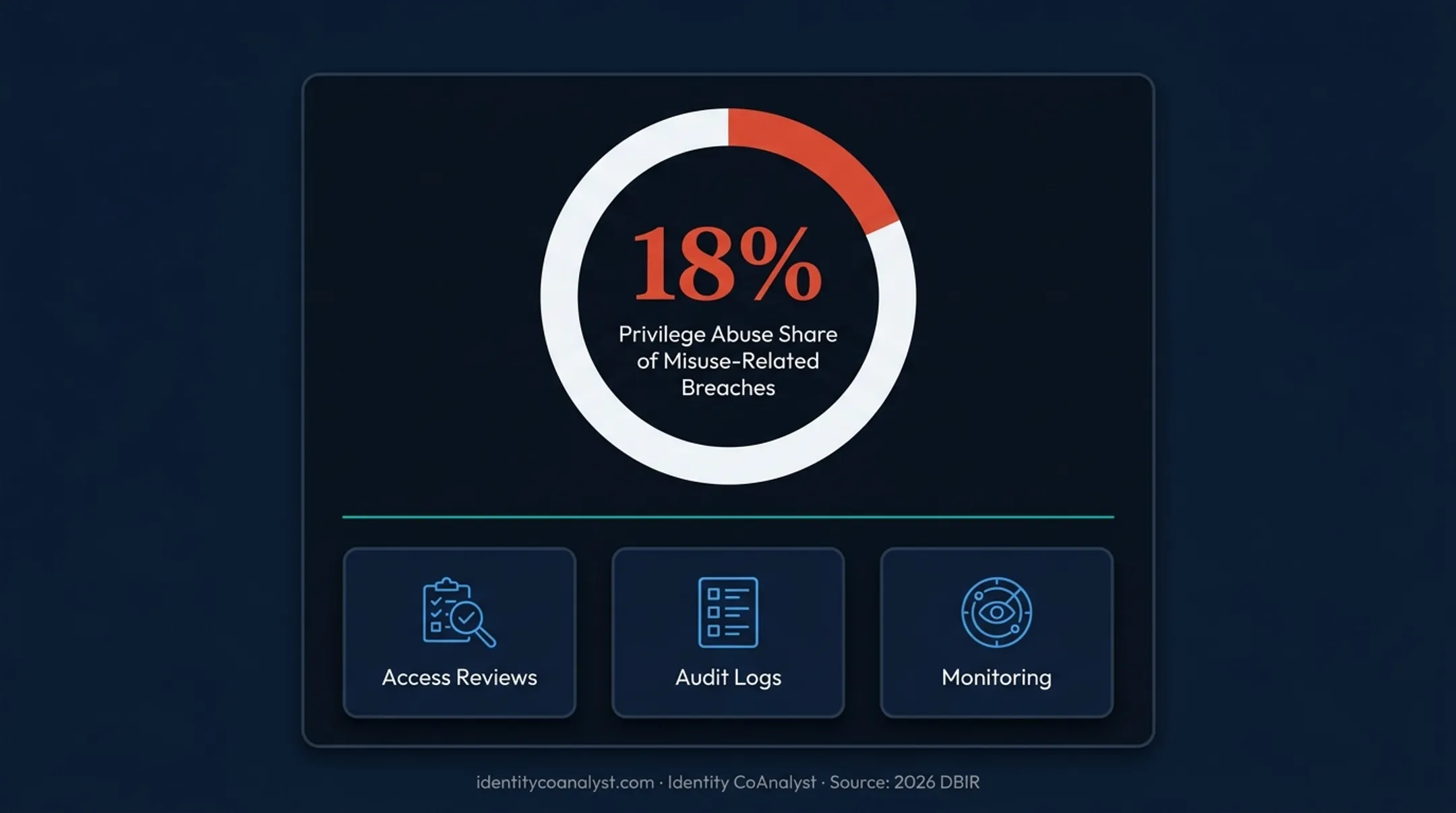

Privilege misuse is a concrete risk. Verizon's 2026 Data Breach Investigations Report found that privilege abuse, where someone uses legitimate access improperly, accounts for 18% of misuse-related breaches (2026 DBIR).
That is not 18% of all breaches, but it is still a strong case for tighter access reviews.
Step-by-Step Roadmap to Implement IAM Design Principles
Step 1: Assess Current State and Define Objectives
Before designing anything, inventory what already exists:
- Identities across HR systems, directories, applications, and service accounts
- Current access policies and where they're documented (or aren't)
- Orphaned or duplicate accounts from past employees or contractors
Then align objectives with the compliance mandates that actually apply. HIPAA's technical safeguards require unique user identification, emergency access procedures, and audit controls under 45 CFR 164.312. SOX-driven financial controls fall under PCAOB AS 2201.
GDPR still applies if you process EU personal data, regardless of where you're headquartered.
Step 2: Gather and Document Requirements
This is where most programs lose months. Traditional discovery depends on stakeholder interviews, scheduling coordination, and spreadsheets—slow, inconsistent, and easy to miss requirements. Twelve stakeholders rarely agree on what "approved access" means without a structured way to surface the disagreement.
Capture requirements across these areas at minimum:
- Access certifications, review cycles, and recertification owners
- Role definitions plus joiner, mover, and leaver lifecycle events
- Privileged access paths and emergency break-glass procedures
- Segregation of duties (SoD) rules and exception handling
- HR, directory, and application integration points
Identity CoAnalyst compresses that discovery with guided conversational questionnaires across IGA, IAM, and PAM. Stakeholders answer one question at a time in a chat-style flow that explains terminology and adapts to their answers. The platform uses 500+ practitioner-written questions across 11 domains and flags contradictions between stakeholders before those gaps become implementation rework.

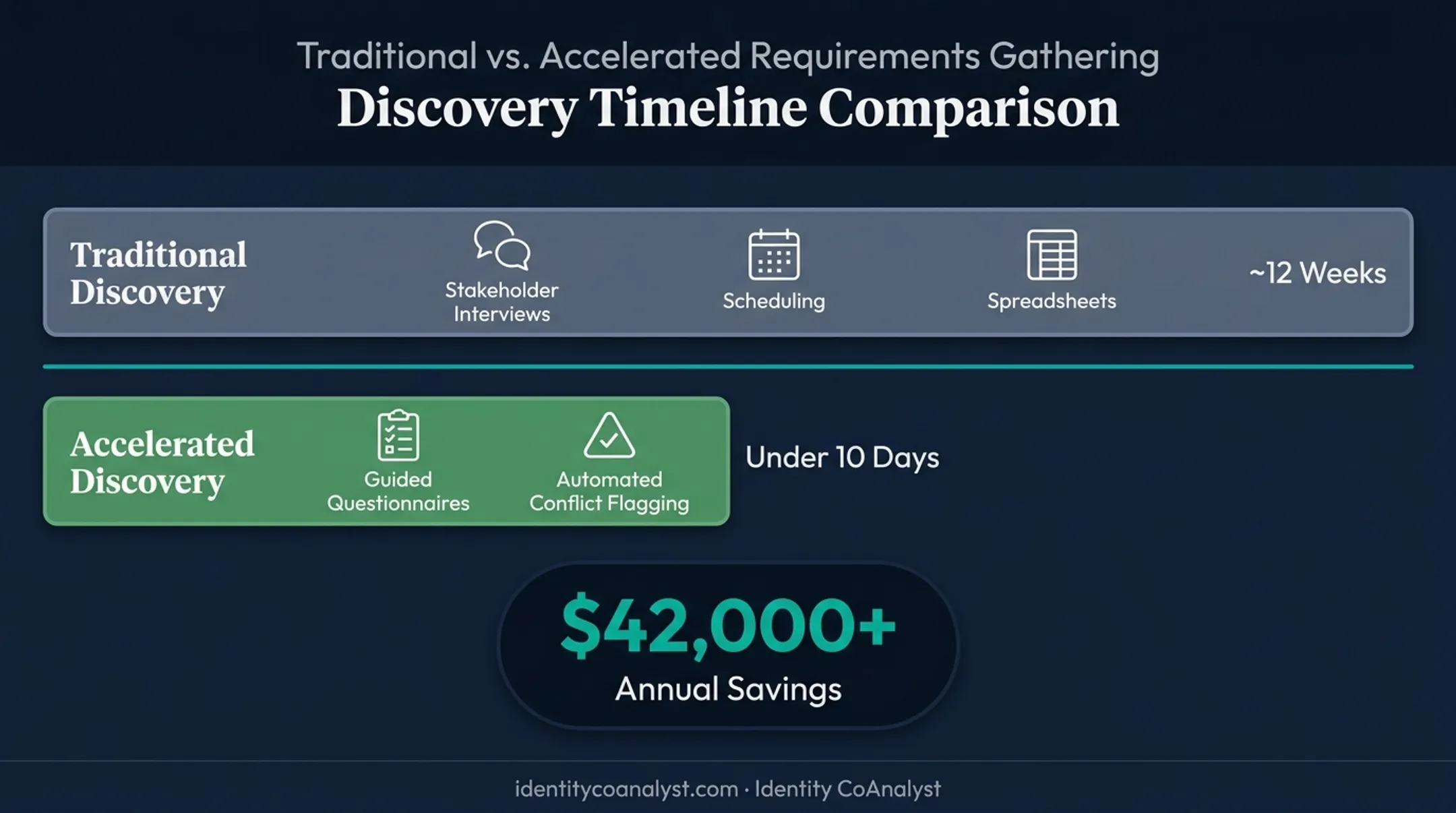

Work that typically takes about 12 weeks can drop to under 10 days. Firms using this approach have reported $42,000+ in annual savings on requirements work alone.
Step 3: Design Policies and Access Models
Translate the requirements you've gathered into concrete structures:
- Map roles to permissions using RBAC as the baseline
- Layer in attribute-based rules where context matters, like data sensitivity or location
- Define approval chains for each access type, especially privileged access
- Document SoD conflicts and the controls that prevent them
Step 4: Pilot, Test, and Roll Out
Don't deploy enterprise-wide on day one. NIST explicitly recommends incremental implementation, with an existing business process serving as a proving ground before broader rollout.
Pick one bounded population, one application set, and one control objective. Measure provisioning time, exception volume, and user friction before expanding.
Step 5: Monitor, Audit, and Refine

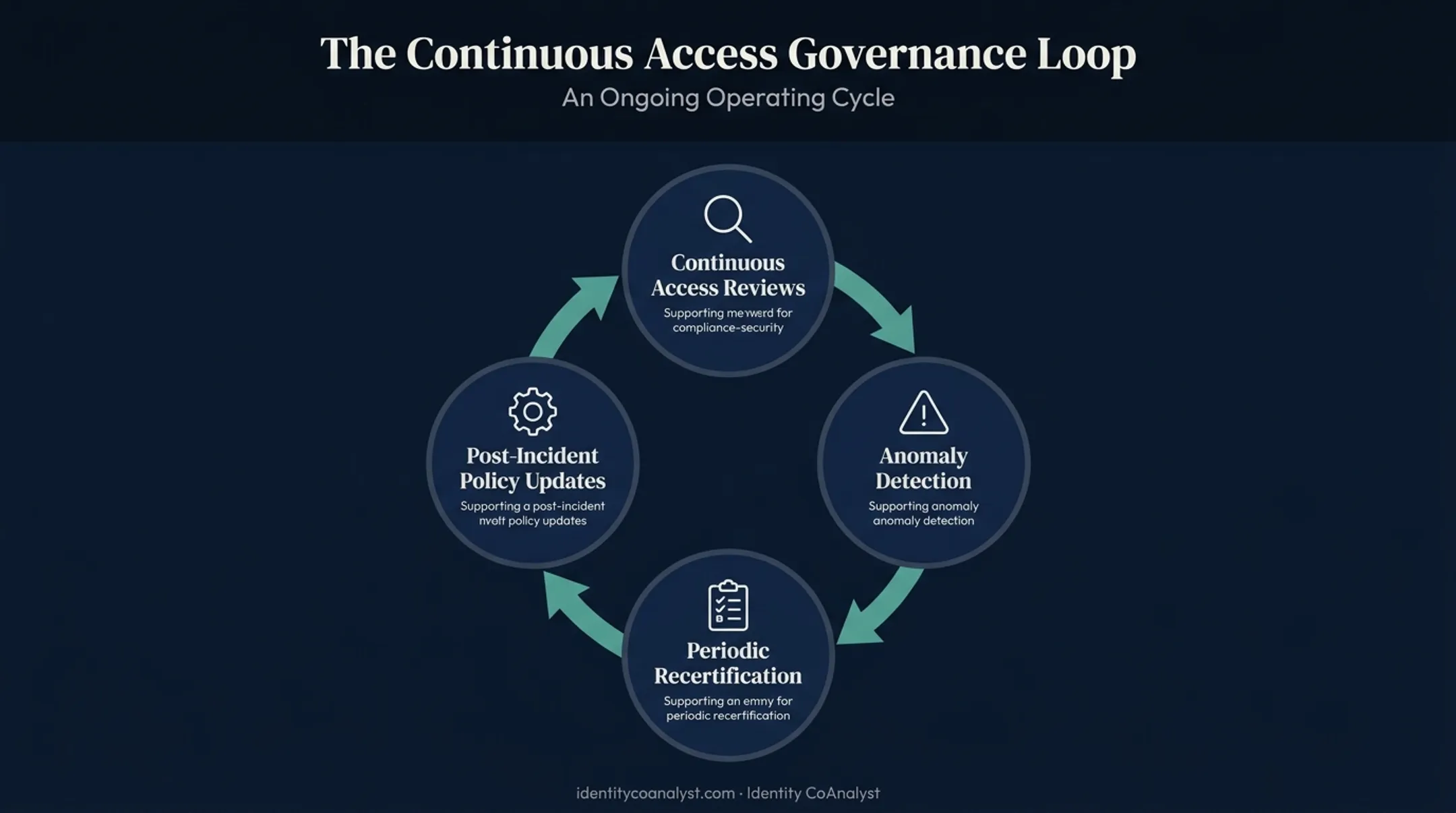

IAM design isn't a one-time project. Build an operating loop so controls stay accurate as roles, apps, and threats change:
- Continuous access reviews tied to high-risk roles and systems
- Anomaly detection on privileged and after-hours access
- Periodic recertification with clear owners and deadlines
- Post-incident policy updates when audits or tickets expose gaps
Choosing the Right IAM Tools and Technology Stack
IAM tooling generally falls into four categories:
| Category | Role | Example Vendors |
|---|---|---|
| IGA | Governs identity lifecycle, certifications, SoD | SailPoint, Saviynt |
| PAM | Secures privileged accounts and sessions | CyberArk |
| IdP | Issues and verifies credentials | Okta |
| SSO/MFA | Authentication at the access point | Okta |
Pick tools from documented requirements, not vendor marketing. Before you shortlist, check:
- Which category owns each requirement (IGA, PAM, IdP, SSO/MFA)
- Gaps one product leaves that another must cover
- Integration with directories, HR, and ITSM already in place
- Total cost of ownership beyond license price
Vendor-agnostic requirements make that shortlist defensible. Platforms like Identity CoAnalyst sit upstream of these tools. They produce the requirements that drive vendor selection, so you do not lock into a platform before you know what you need.
Common Implementation Challenges and How to Avoid Them
IAM implementations often stall in discovery long before design principles get applied. Two problems show up most often:
- Stakeholder misalignment and scheduling delays stretch discovery for months when interviews depend on twelve busy calendars aligning
- Scope creep and incomplete requirements drive expensive rework once configuration is underway. A missed requirement found late costs far more to fix than one caught early
Structured, repeatable discovery methods help consulting firms and enterprises avoid both. Reusable questionnaires, branching logic, and version control let teams:
- Standardize discovery coverage across engagements without rebuilding from scratch
- Adapt each questionnaire's path to a client's specific answers
- Maintain tenant-level data isolation across concurrent client discoveries, so a bank's requirements stay separate from a hospital's
Frequently Asked Questions
What are the fundamentals of identity and access management (IAM)?
IAM covers four core functions: authentication (verifying identity), authorization (granting access), administration (managing lifecycle), and accountability (logging and auditing activity).
What are the core design principles of IAM?
The foundational principles are least privilege, Zero Trust, RBAC/ABAC access models, and built-in auditability. Together they limit access to what's needed and make every decision traceable.
How long does it typically take to implement IAM design principles?
Traditional requirements gathering alone often takes 8 to 16 weeks. Accelerated approaches using AI-guided discovery tools can compress that phase to under 10 days.
What is the difference between RBAC and ABAC in IAM design?
RBAC assigns access based on job role and is simple to manage and audit for stable functions. ABAC grants access based on attributes like department or context, offering more flexibility with added complexity.
Why do IAM implementations commonly fail?
Poor requirements gathering, stakeholder misalignment, and jumping to tool selection before defining actual needs are the most common causes. Process gaps and weak data quality usually amplify those failures.
How does Zero Trust relate to IAM design principles?
Zero Trust extends core IAM principles by requiring continuous verification of every access request, rather than trusting users once they're inside the network. It builds directly on least privilege and strong authentication.
