Most organizations skip straight to tool configuration. They open Entra PIM or CyberArk and start clicking before they've defined roles, workflows, or what "least privilege" actually means for their environment. That shortcut creates rework, coverage gaps, and audit findings down the road.
This guide covers planning, core implementation practices, common pitfalls, and the governance work that keeps PIM effective long after go-live.
Key Takeaways
- Complete requirements gathering and role mapping before any tool configuration
- Back JIT access, MFA, and approval workflows with clear justification policies
- Treat least privilege as a continuous review cycle
- Define governance requirements in vendor-agnostic terms before platform-specific work
What Is Privileged Identity Management?
PIM is the discipline and toolset for managing, controlling, and monitoring access to an organization's most sensitive accounts and roles across directory, cloud, and on-premises resources. According to Microsoft's own documentation, PIM "provides time-based and approval-based role activation to mitigate the risks of excessive, unnecessary, or unrestricted access to resources."
Four principles anchor a working PIM program:
- Least privilege — users get only the access their role requires
- Just-in-time (JIT) access — privileges activate temporarily, not permanently
- Approval workflows — high-impact roles require sign-off before activation
- Auditability — every activation, approval, and denial gets logged
PIM vs. PAM: Where the Line Sits
People use PIM and PAM interchangeably, but they're not the same scope. Gartner defines PAM as tools that control and secure elevated technical access broadly, including vaulting, session recording, and credential rotation. PIM is narrower: it governs role activation and identity-layer access, most commonly inside Microsoft Entra ID. Think of PIM as the activation and approval layer; PAM often wraps around it with credential management and session monitoring.
Pre-Implementation Planning: The Foundation for Success
Requirements gathering is the highest-risk phase of any PIM project. Get it wrong here, and every downstream configuration decision compounds the error.
Manual discovery is slow. A typical end-to-end privileged access implementation can run 12 to 20 weeks depending on account volume and integration complexity, per CyberArk implementation guidance. Much of that time goes to stakeholder interviews, spreadsheet reconciliation, and chasing down role owners.

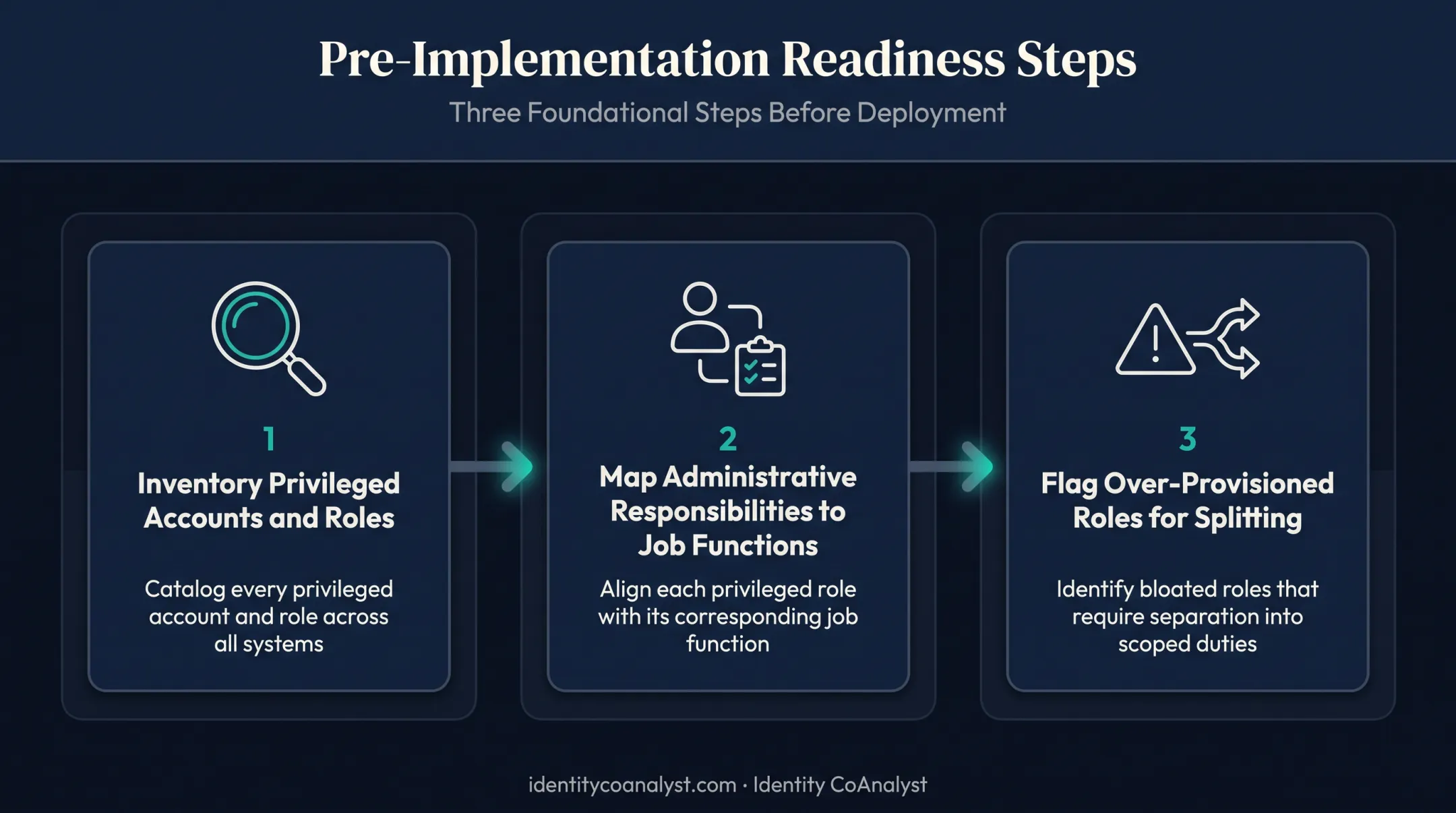

Before defining eligible-versus-permanent access models, you need to:
- Inventory every privileged account and role across on-prem Active Directory, cloud directories, and SaaS platforms
- Map administrative responsibilities to actual job functions, not job titles, but the actual tasks people perform
- Flag over-provisioned broad roles like Global Administrator that should be split into narrower, task-specific roles
Skipping this step is how organizations end up converting bloated, over-permissioned roles directly into "eligible" assignments, carrying old privilege creep straight into the new model.
Where Identity CoAnalyst Fits

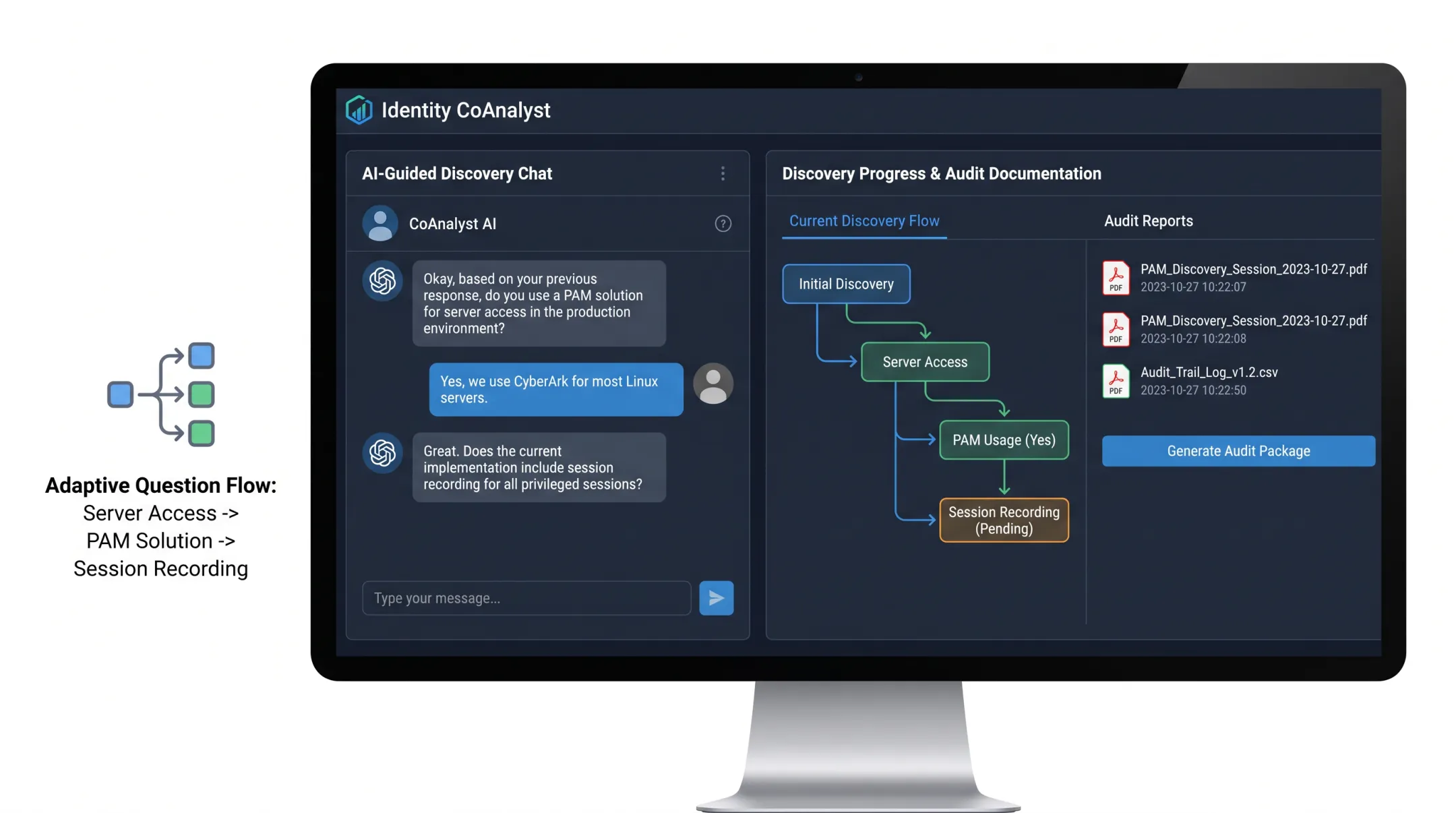

Identity CoAnalyst compresses this discovery phase. Instead of manual stakeholder interviews and spreadsheet discovery, the platform runs AI-guided conversational questionnaires built for PAM, IGA, and IAM domains.
Its Privileged Access Management questionnaire alone covers 56 practitioner-written questions across:
- Account discovery and password vaulting
- Session management and break-glass access
- Privilege elevation, service accounts, and third-party access
The AI adapts follow-up questions based on earlier answers and flags contradictions. For example, one stakeholder may specify a 90-day vendor access window while another says 30 days.
For consulting firms and enterprises evaluating or deploying PAM/PIM platforms, this means audit-ready, implementation-ready documentation in days rather than weeks, without losing the nuance a good interviewer would catch.

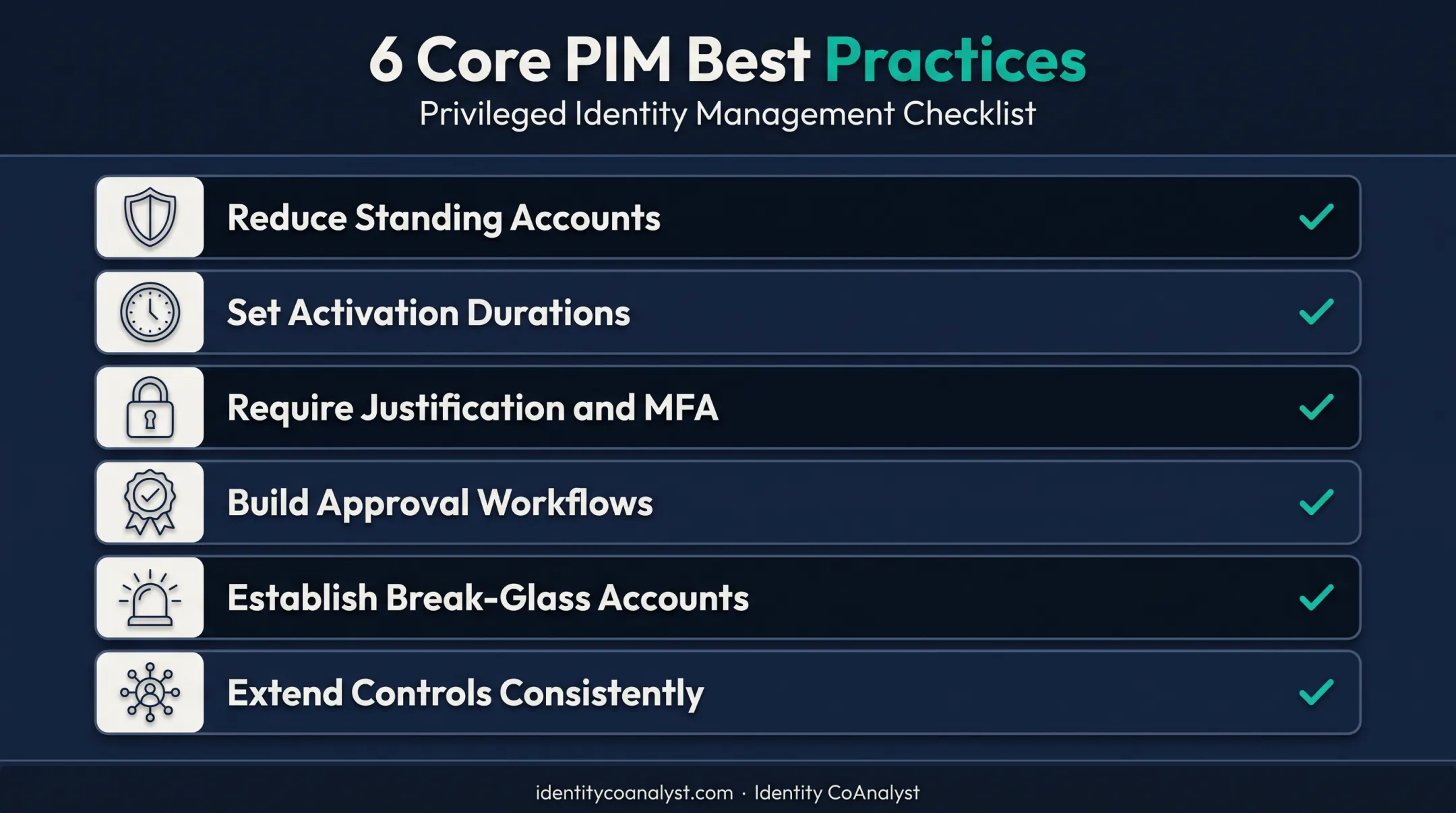

Core Best Practices for PIM Implementation
Once requirements are solid, these practices separate a resilient PIM rollout from a checkbox exercise.
- Reduce standing privileged accounts. Convert permanent assignments to eligible wherever possible, and use granular custom roles instead of defaulting to broad administrative ones.
- Set activation durations that match real task needs. Microsoft's Entra role settings allow activation windows from one to 24 hours, but most task-based work only needs 1–4 hours. Longer windows just extend the attack surface unnecessarily.
- Require meaningful justification and step-up MFA. A justification field that accepts "test" or "work" provides zero audit value. Require specific, ticket-linked reasons, and where possible, require re-authentication with a different factor than the one used at session start.
- Build approval workflows for high-impact roles. Global Administrator, Privileged Role Administrator, and subscription Owner should never self-activate without a designated approver.
- Establish break-glass accounts correctly. These accounts sit outside standard PIM workflows by design, but they still need controls:
- Two or more dedicated emergency accounts, never tied to an individual user
- Credentials stored in secure, separate physical locations
- Sign-in and audit log monitoring with alerts to other admins
- Global Administrator assignment kept permanent, not eligible, per Microsoft's guidance
- Extend controls consistently. Don't just cover Entra directory roles. Apply the same rigor to Azure RBAC assignments and privileged group memberships. A gap in any one layer undermines the whole model.
Common Implementation Pitfalls to Avoid
Watch for these recurring mistakes:
- Enabling PIM everywhere at once instead of piloting with the highest-risk personas first, then expanding in phases
- Converting roles to eligible without auditing current holders, which imports existing privilege creep into the new system
- Accepting vague justifications like "access needed" that give auditors and attackers nothing useful
- Leaving activation durations at the maximum default instead of setting time windows that match the task
- Assuming Entra ID P2 licensing without verifying. PIM requires Entra ID Governance or P2 licenses to function fully
- Bypassing PIM with out-of-band assignments. Microsoft alerts watch for "roles being assigned outside of Privileged Identity Management," because unmonitored grants can signal an active attack
Sustaining PIM: Governance, Monitoring & Continuous Improvement
PIM runs as an ongoing operating model, not a project you close out.
Quarterly Access Reviews
Set a quarterly cadence for reviewing who holds eligibility for privileged roles. People change teams, leave projects, or shift responsibilities — and eligibility that made sense six months ago often doesn't anymore. Microsoft's access reviews feature supports recurring reviews at weekly, monthly, quarterly, or annual frequencies, with assigned reviewers for each cycle.

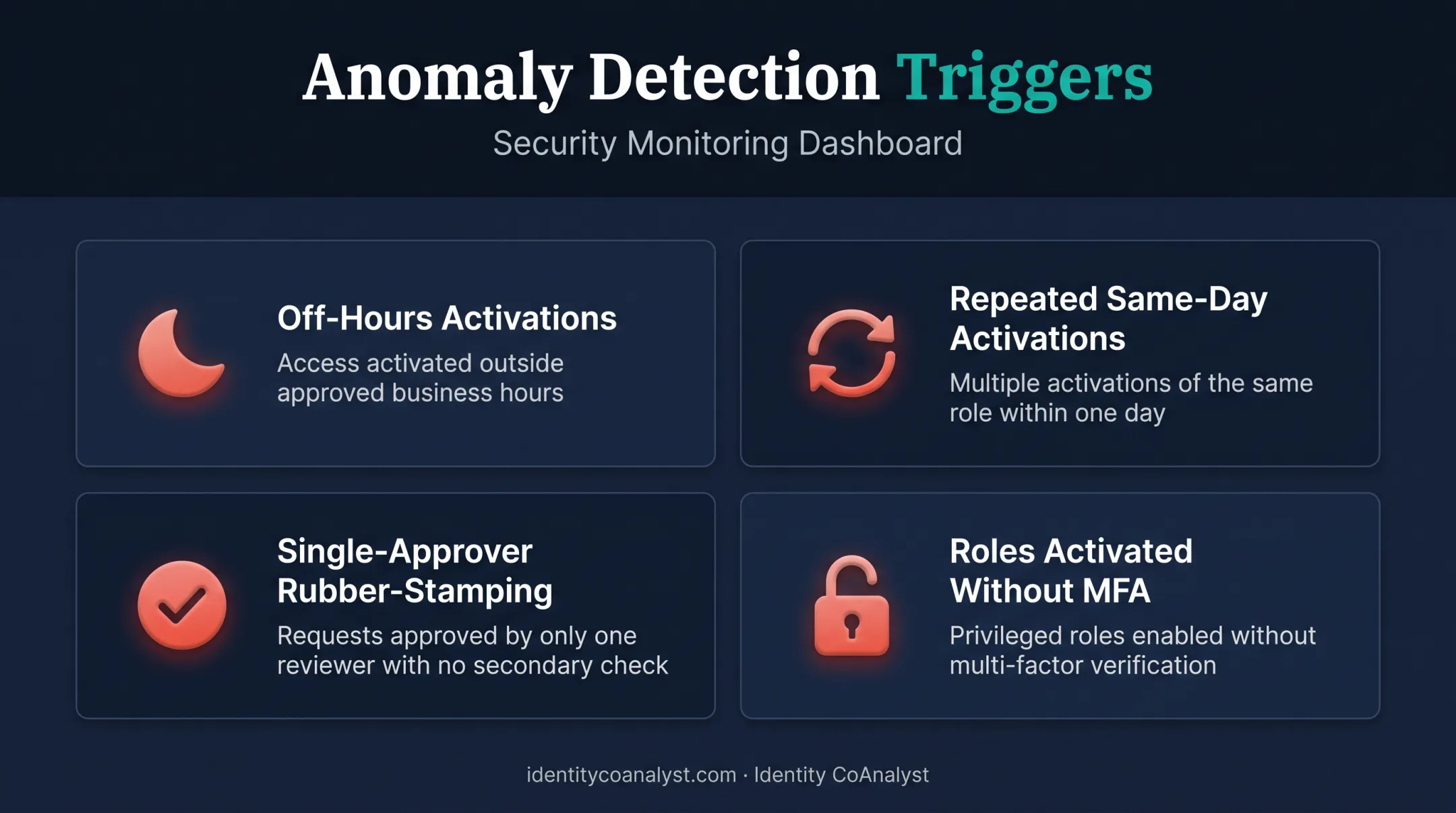

Anomaly Detection
Configure PIM's built-in security alerts to flag:
- Off-hours activations
- Repeated same-day activations by the same user
- Single-approver rubber-stamping patterns
- Roles activated without MFA enforcement
Track a Small Set of KPIs
Don't drown governance in metrics. Track monthly:
| KPI | Why It Matters |
|---|---|
| % of privileged users governed by PIM | Shows coverage gaps |
| Average activation duration | Flags drift toward overly broad windows |
| Break-glass account usage count | Confirms emergency access stays rare |
Map this evidence to frameworks like NIST CSF or SOC 2 so audit readiness stays continuous rather than a scramble before each assessment. Feed the same metrics back into each quarter’s reviews to tighten activation windows, approval rules, and role design.
Frequently Asked Questions
What is privileged identity management?
PIM is the practice of managing, monitoring, and time-bounding access to sensitive accounts and roles using just-in-time activation, approvals, and auditing. It reduces standing privilege exposure across cloud and on-prem environments.
What is the difference between PIM and RBAC?
RBAC defines what permissions a role holds. PIM controls when and how that role can be activated, layering time-bound, audited access on top of RBAC's static permission structure.
What is the difference between PIM and PAM?
PIM focuses on role activation and identity governance, often within Microsoft Entra. PAM is broader, typically including credential vaulting, session recording, and password rotation on top of activation controls.
How long should PIM activation durations be?
Match durations to actual task length, commonly 1 to 4 hours, rather than defaulting to the maximum allowed window. Shorter windows minimize the exposure if a session is compromised.
What are the most common PIM implementation mistakes?
The most common mistakes are rolling out to all roles at once instead of piloting, ignoring break-glass account governance, and skipping a pre-implementation audit of who currently holds privileged roles.
How does PIM support audit and compliance requirements?
PIM's activation logs, approval records, and recurring access reviews provide auditable evidence of least-privilege enforcement. This evidence maps cleanly to frameworks like NIST CSF and supports SOC 2 access-control criteria.
