Many organizations still jump straight to tool selection: buying an IGA platform or PAM solution before defining what they actually need. The result is expensive rework, fragmented policy enforcement, and gaps auditors love to find.
This guide covers the core pillars of IAM architecture, a step-by-step design process, the leading architecture models, and the pitfalls that trip up even experienced teams.
Key Takeaways
- IAM architecture is the blueprint that unifies authentication, authorization, administration, and accountability in one system
- The four As: Authentication, Authorization, Administration, and Accountability form the foundation of every solid framework
- Requirements gathering, not tool selection, is the step most teams rush and regret
- A phased design approach cuts risk, speeds compliance readiness, and shortens implementation timelines
What Is IAM Architecture and Why It Matters
IAM architecture is the strategic design connecting policies, technologies, and processes that govern who can access what, when, and under what conditions. It is the framework that determines which tools belong in your stack.
Why a Deliberate Framework Beats Ad-Hoc Tooling
Skip the framework, and you end up with fragmented point solutions, inconsistent policy enforcement, and audit gaps that surface at the worst possible time: during a breach investigation or a regulatory audit.
The financial stakes are steep. The global average cost of a data breach hit $4.44 million in 2025, but US organizations paid a record $10.22 million on average, according to IBM's 2025 Cost of a Data Breach Report.
Breaches involving compromised credentials averaged $4.67 million and took 246 days to identify and contain, the longest of any attack vector IBM tracked.
That's the cost of getting identity wrong. A deliberate architecture is what closes that gap.
Who Needs This Framework
This applies directly to:
- Enterprises modernizing legacy IAM that have outgrown siloed on-premises directories
- Consulting firms scoping identity engagements for clients across IGA, IAM, and PAM
- Organizations evaluating vendors like SailPoint, Saviynt, Omada, or Okta before committing budget
If any of these describe you, start with the framework below, not the vendor shortlist.
The Core Pillars of an IAM Architecture Framework

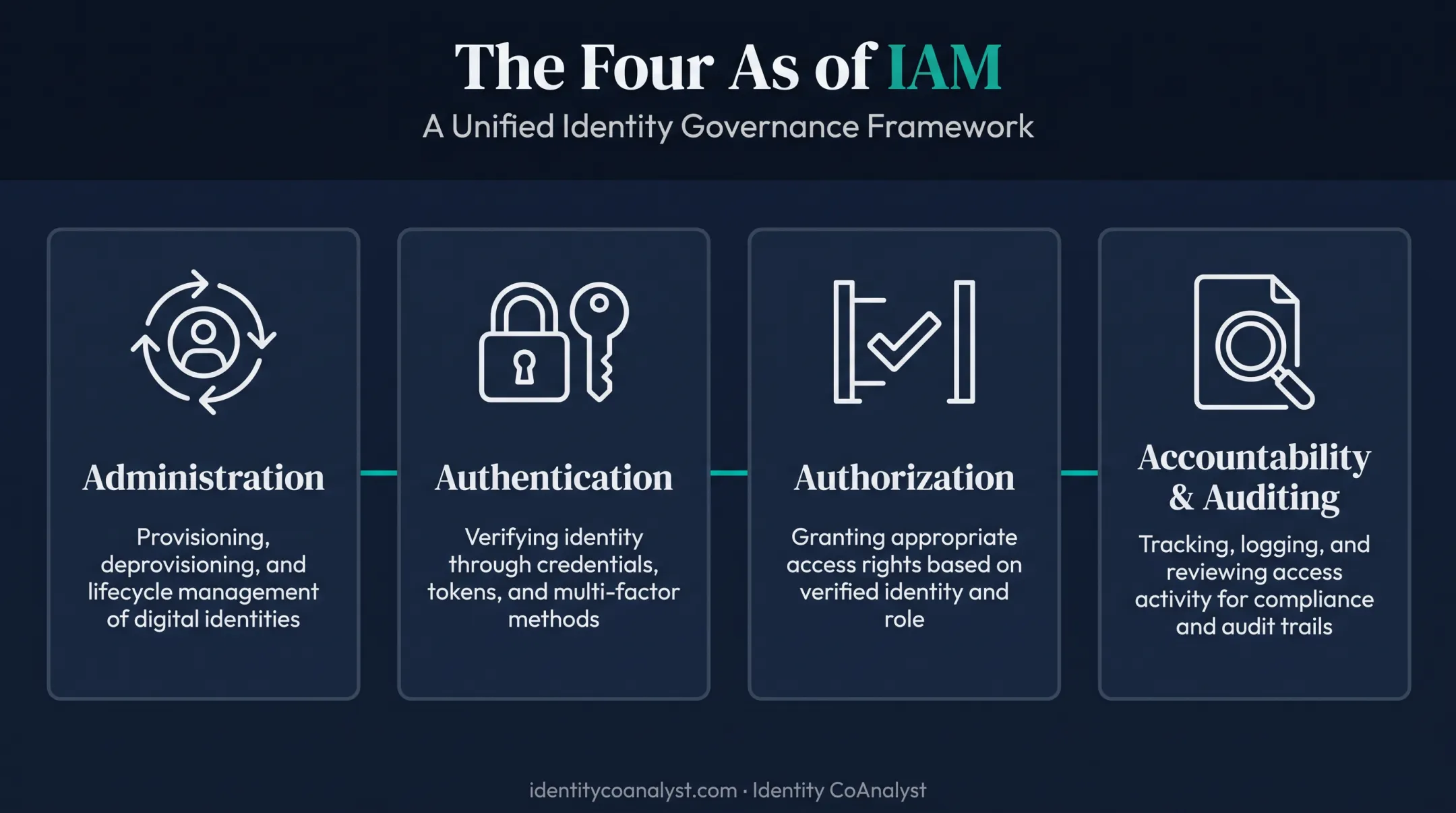

KuppingerCole's IAM reference architecture organizes the discipline into four functional columns known as the "four As of IAM": Administration, Authentication, Authorization, and Accountability/Auditing. Every mature IAM program maps back to these pillars.
Administration: Managing the Identity Lifecycle
Administration covers joiner-mover-leaver (JML) processes, identity provisioning, and directory services. This is the backbone: when someone joins, changes roles, or leaves, their access needs to follow automatically, not three weeks later via a manual ticket.
Authentication: Verifying Identity
This pillar answers "are you who you say you are?" Key components:
- Multi-factor authentication (MFA) and passwordless methods
- Adaptive, risk-based authentication that adjusts friction to context
- Federation standards like SAML, OAuth2, and OIDC
NIST SP 800-63-4, which superseded the prior guidelines as of August 2025, defines MFA as an authentication system requiring more than one distinct factor type. Assurance levels (AAL1–AAL3) govern authenticator strength.
Authorization: Enforcing Access Decisions

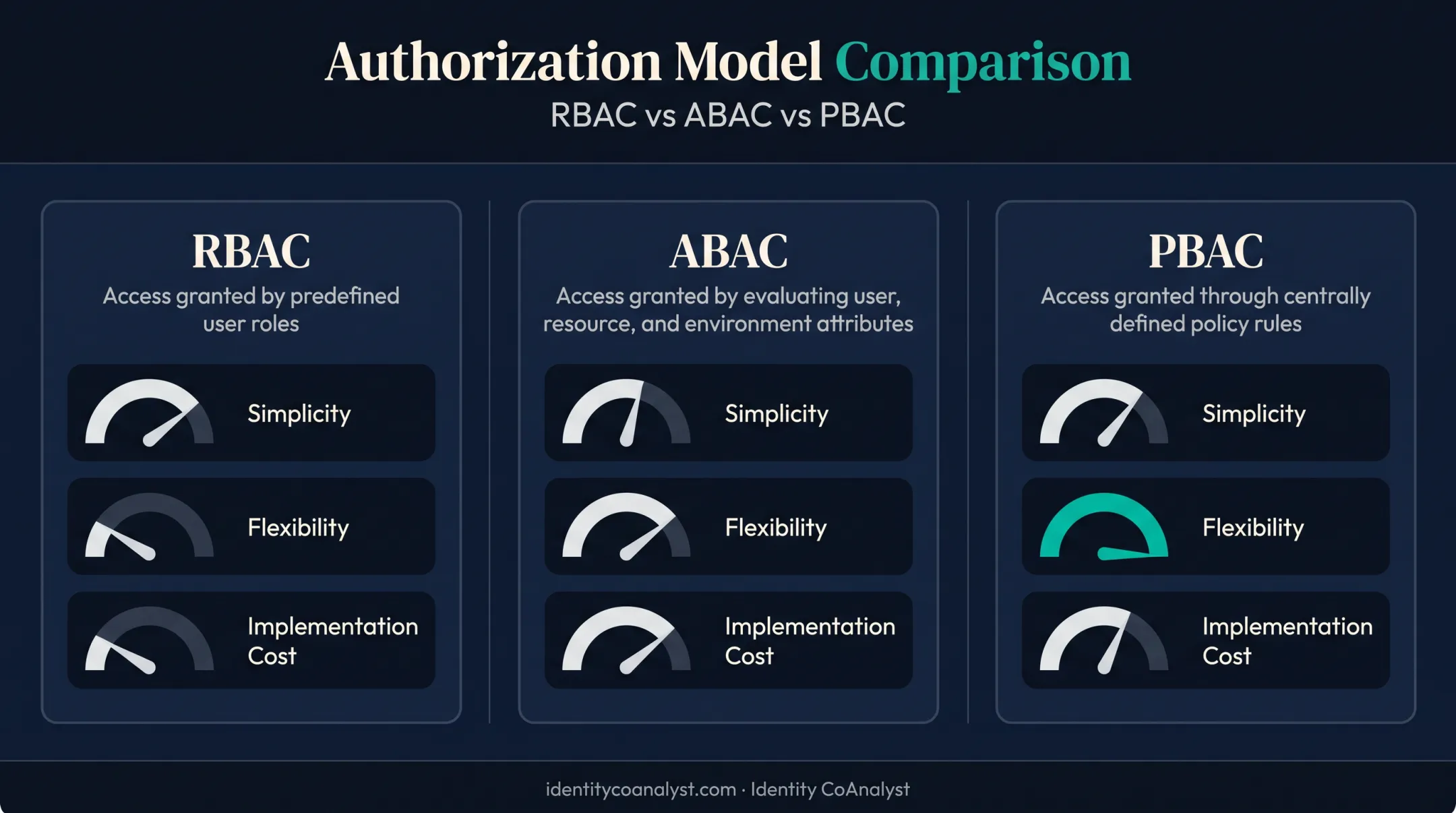

Once identity is verified, authorization decides what that identity can actually do. Three models dominate:
| Model | Simplicity | Flexibility | Implementation Cost |
|---|---|---|---|
| RBAC | High — role-based, easy to audit | Low — role explosion at scale | Low to moderate |
| ABAC | Moderate — attribute logic | High — context-aware decisions | Higher — attribute management overhead |
| PBAC | Moderate — centralized policy | High — combines RBAC/ABAC strengths | Higher — vendor-dependent |
NIST's own guidance sums up the trade-off well: ABAC "can be easy to set up but complex to manage." RBAC, standardized under ANSI/INCITS 359-2012, scales predictably until role counts spiral out of control.
Accountability and Auditing: Proving Compliance
This pillar keeps everything traceable. Core mechanisms:
- Access reviews: periodic certification of who has access to what
- Segregation of Duties (SoD): controls that prevent conflicting permissions
- Continuous monitoring: user behavior analytics (UBA) and ongoing access telemetry
NIST SP 800-53's AC-5 control requires that "security personnel who administer access control functions do not also administer audit functions." Many organizations discover that separation only during an audit.
Extending the Framework: IGA, Access Management, and PAM
Layered on top of the four As are three operational domains:
- Identity Governance & Administration (IGA) — lifecycle management and certifications
- Access Management & Federation — runtime authentication and SSO
- Privileged Access Management (PAM) — controls for elevated and admin-level accounts

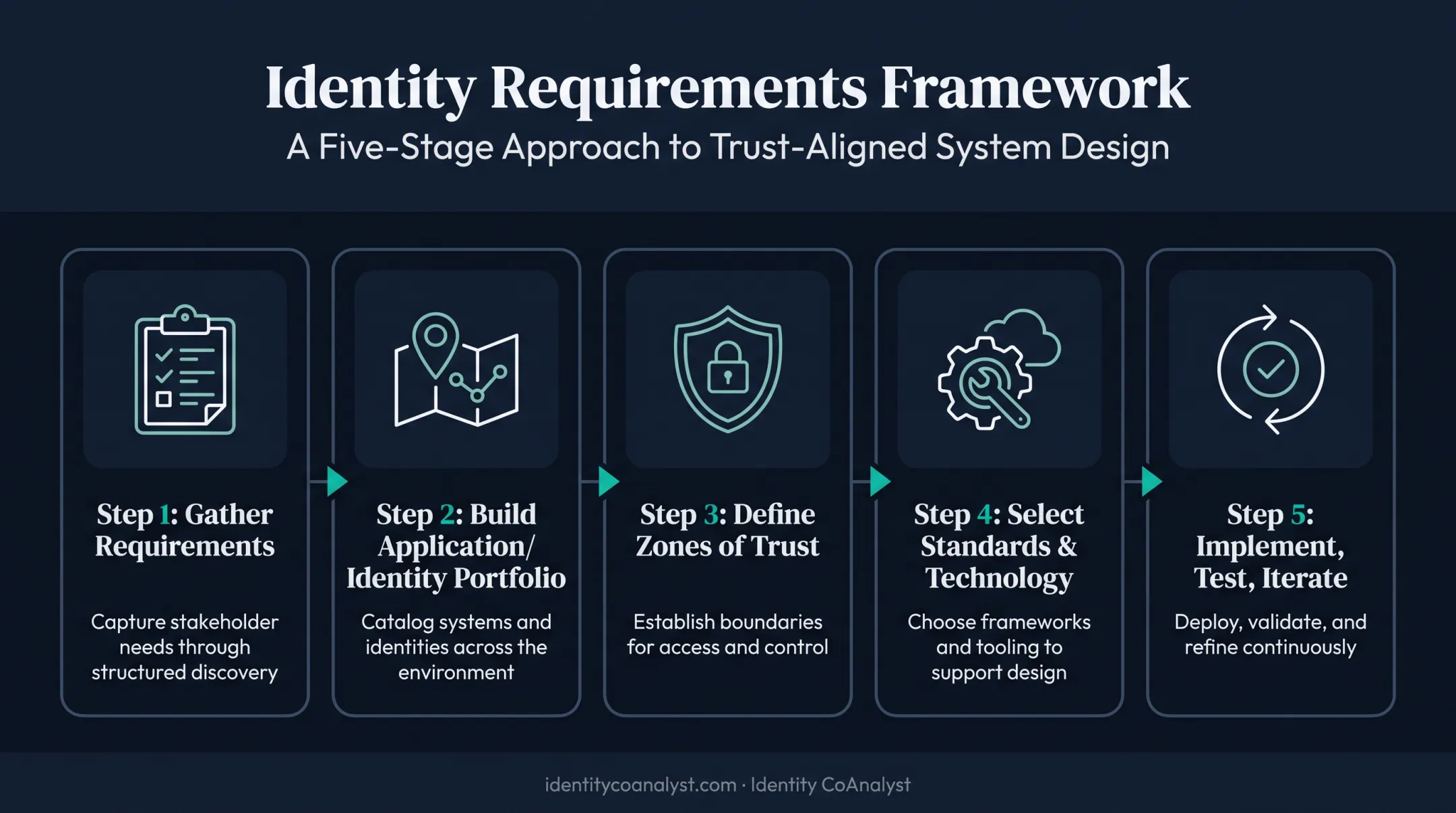

A Step-by-Step Process for Designing Your IAM Architecture
Think of this as a phased methodology, not a checklist to rush through.
Step 1: Gather and Document Requirements
This phase traditionally takes 8 to 16 weeks (commonly around 12) of stakeholder interviews, workshops, and spreadsheets. It's also the most error-prone stage of any identity project. Requirements missed here surface later, during testing or audit, and they're expensive to fix at that point.
A traditional 12-week discovery involving three consultants at a blended $175/hour rate runs roughly $252,000 in labor before implementation even starts.
This is exactly the bottleneck Identity CoAnalyst was built to solve. Instead of sequential interviews, it deploys AI-guided conversational questionnaires simultaneously across stakeholder groups, with more than 500 practitioner-written questions across 11 IGA, IAM, and PAM domains. Stakeholders respond asynchronously, in plain language, with adaptive follow-ups that probe vague answers.
Cross-stakeholder analytics then:
- Flags contradictions across respondent groups
- Scores consensus on contested requirements
- Surfaces gaps before they become implementation surprises

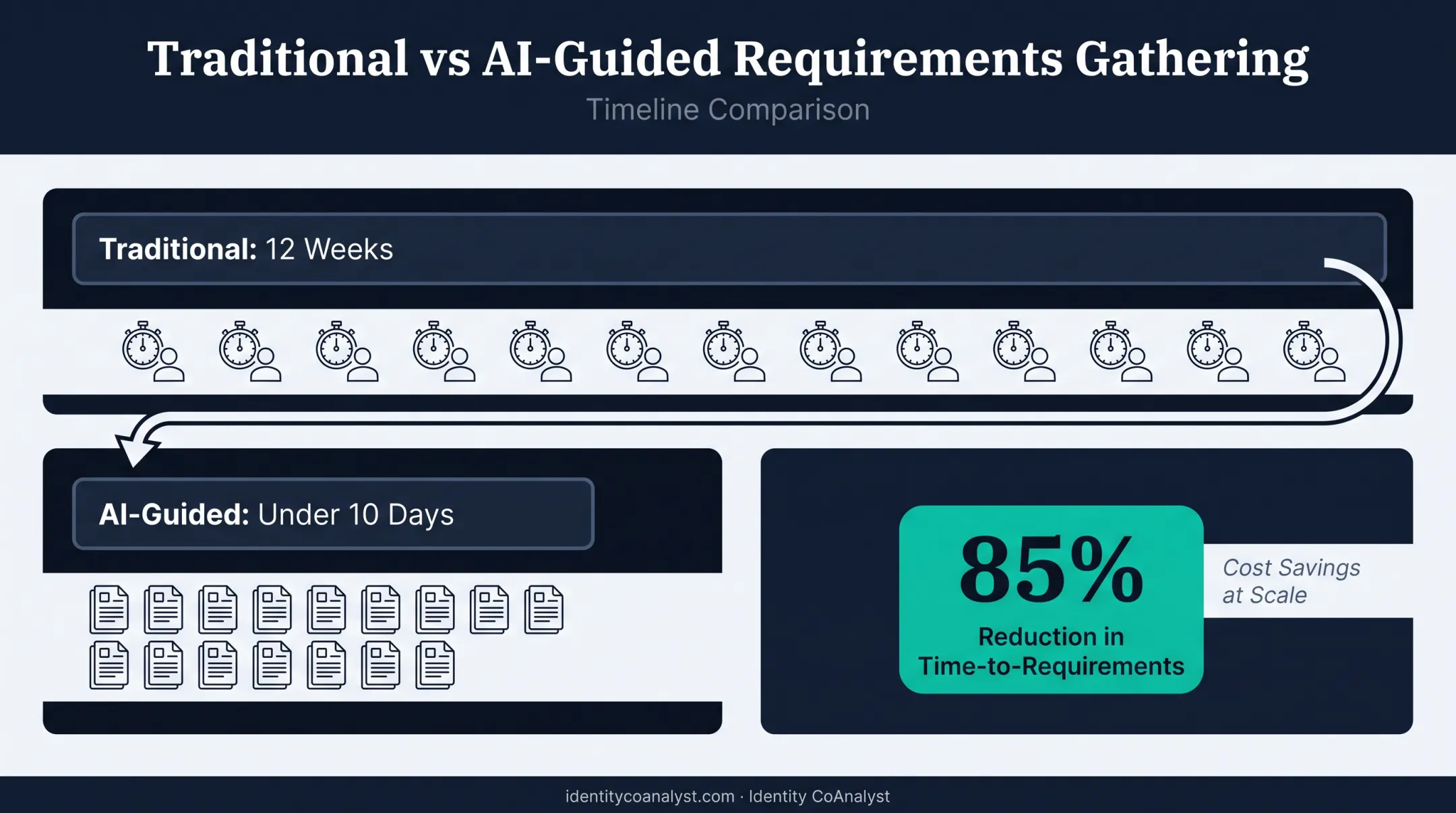

The documented result: certification and compliance requirements gathering drops from 12 weeks to under 10 days, an 85% time reduction, with audit-ready documentation generated automatically.
Step 2: Build an Application and Identity Portfolio
Map every application, identity type, and connection point the architecture must cover:
- Human users
- Service accounts
- Bots
- Devices
Don't skip non-human identities; they're often the fastest-growing and least-governed category in modern environments.
Step 3: Define Your Reference Architecture and Zones of Trust
Segment resources by risk and regulatory value. Separate:
- Internal workforce identity infrastructure
- External customer-facing identity infrastructure
This separation limits blast radius and keeps compliance scope manageable.
Step 4: Select Standards and Technology
Evaluate vendors against your documented requirements, not the other way around. Use open standards such as SCIM, SAML, and OIDC as your evaluation baseline to stay vendor-agnostic. A requirements baseline built before vendor conversations start (rather than during a sales cycle) keeps evaluations honest and comparable across SailPoint, Saviynt, Omada, Oracle, Okta, or CyberArk.
Step 5: Implement, Test, and Iterate
Roll out in phases:
- Test RBAC and policy logic before full deployment
- Establish a recurring audit cadence after go-live
This isn't a one-time project. It's ongoing governance.
Choosing the Right Architecture Model for Your Organization
Traditional siloed IAM treats employee, customer, and machine identities as separate problems with separate tools. The "Identity Fabric" approach, described by Gartner as "a connected, risk-aware system of systems," unifies them under one architecture instead.
Within that fabric, you still choose how identity services are hosted:
- Cloud-native (IDaaS): Best for cross-domain federation and machine-scale identity needs, and a common choice for US enterprises in 2025
- Hybrid: Makes sense when some systems can't move to the cloud yet
- On-premises: Persists mainly where data-residency rules or air-gapped requirements demand it
Match your choice to organizational scale, regulatory environment, and multi-cloud complexity—not to whatever your last vendor demo pitched.
Common Pitfalls and Best Practices in IAM Architecture Design
The biggest pitfall: incomplete or inconsistent requirements gathering. "Zero missed requirements" should be treated as a hard success metric, not an aspiration. Gaps discovered during implementation are far costlier than gaps caught during discovery.
Best practices that keep the rest of the architecture from drifting:
- Enforce least-privilege access as a default, not an exception
- Run entitlement reviews on a regular, defined cadence
- Treat the architecture as living, not fixed. Regulations, cloud adoption, and non-human identity growth will force reassessment
Frequently Asked Questions
What does an identity and access management (IAM) architect do?
An IAM architect designs the framework connecting authentication, authorization, and governance systems. They work directly with stakeholders to translate business requirements into technical specifications that engineering teams can build against.
What are the 5 pillars of identity and access management (IAM)?
Commonly cited pillars are authentication, authorization, administration, auditing/accountability, and identity governance. Some analyst models group these into four core "As" instead of five separate pillars.
What is the difference between identity and access management (IAM) and single sign-on (SSO)?
SSO is one authentication capability within the broader IAM framework, not a standalone replacement. IAM also covers provisioning, governance, and auditing that SSO alone does not address.
How long does it typically take to design and implement an IAM architecture framework?
Traditional requirements gathering alone commonly takes 8–16 weeks, relying on interviews, workshops, and spreadsheets. Modern AI-assisted approaches can compress that phase to under 10 days.
What is the difference between IAM and IGA?
IGA (Identity Governance & Administration) is a subset of IAM focused on lifecycle management and access certifications. IAM is the broader umbrella covering authentication, authorization, and privileged access as well.
