Introduction and TL;DR
Role-based access control (RBAC) ties permissions to defined organizational roles instead of assigning access one user at a time.
The National Institute of Standards and Technology defines RBAC as controlling resource access by identifying permitted actions through roles rather than individual identities, making it a foundational authorization model for enterprise IAM and IGA programs.
Results vary widely. A well-designed model simplifies onboarding, enforces least privilege, and makes audits far less painful. A poorly designed one creates role explosion and overlapping access, with privilege escalation that hides in plain sight.
This article covers how to design and roll out RBAC, prepare for implementation, and apply the governance controls that actually matter. It also explains how to validate the model once it's live and when ABAC or another model belongs alongside it.
Key takeaways:
- Start with business processes and permissions, not existing user access
- Build a manageable role structure with clear ownership and separation of duties
- Roll out in phases, automate lifecycle events, and test before you expand
- Review role effectiveness continuously, not just at audit time
How to Implement an RBAC Model
Step 1: Establish Scope, Objectives, and Accountability
Before touching a permission set, define what success looks like. Common objectives include reducing excessive access, fixing broken joiner-mover-leaver processes, supporting a compliance mandate, or standardizing access across a sprawl of applications.
Pick a starting scope based on risk, not convenience:
- Sensitive applications or high-value data first
- Privileged functions before general-purpose roles
- One representative business unit rather than an enterprise-wide launch
Assign decision rights early. Security, IAM/IGA, HR, application owners, business managers, compliance, and role owners all need documented approval authority over role definitions, permission changes, exceptions, and retirements. Without that clarity, roles drift the moment nobody's watching.
Finally, decide what evidence the program must produce: role definitions, permission mappings, approval history, access reviews, SoD decisions, and change records. If you can't produce that evidence during an audit, the model isn't governed, it's just organized.
Step 2: Inventory Identities, Resources, Permissions, and Current Access
Build a complete inventory: users, contractors, service accounts, applications, data repositories, privileged functions, and existing groups. Map current permissions to actual business actions such as view, create, approve, modify, export, administer, or delete, rather than relying on cryptic technical group names.
Then compare that access against actual job responsibilities. This step usually surfaces:
- Orphaned accounts and stale permissions
- Direct user grants that bypass roles entirely
- Inactive roles nobody remembers creating
- Privilege accumulation from years of one-off exceptions
This is often where RBAC projects stall. Stakeholder input arrives fragmented across spreadsheets, emails, and half-remembered meetings, and traditional discovery can take 12 weeks of interviews before a single policy gets drafted.

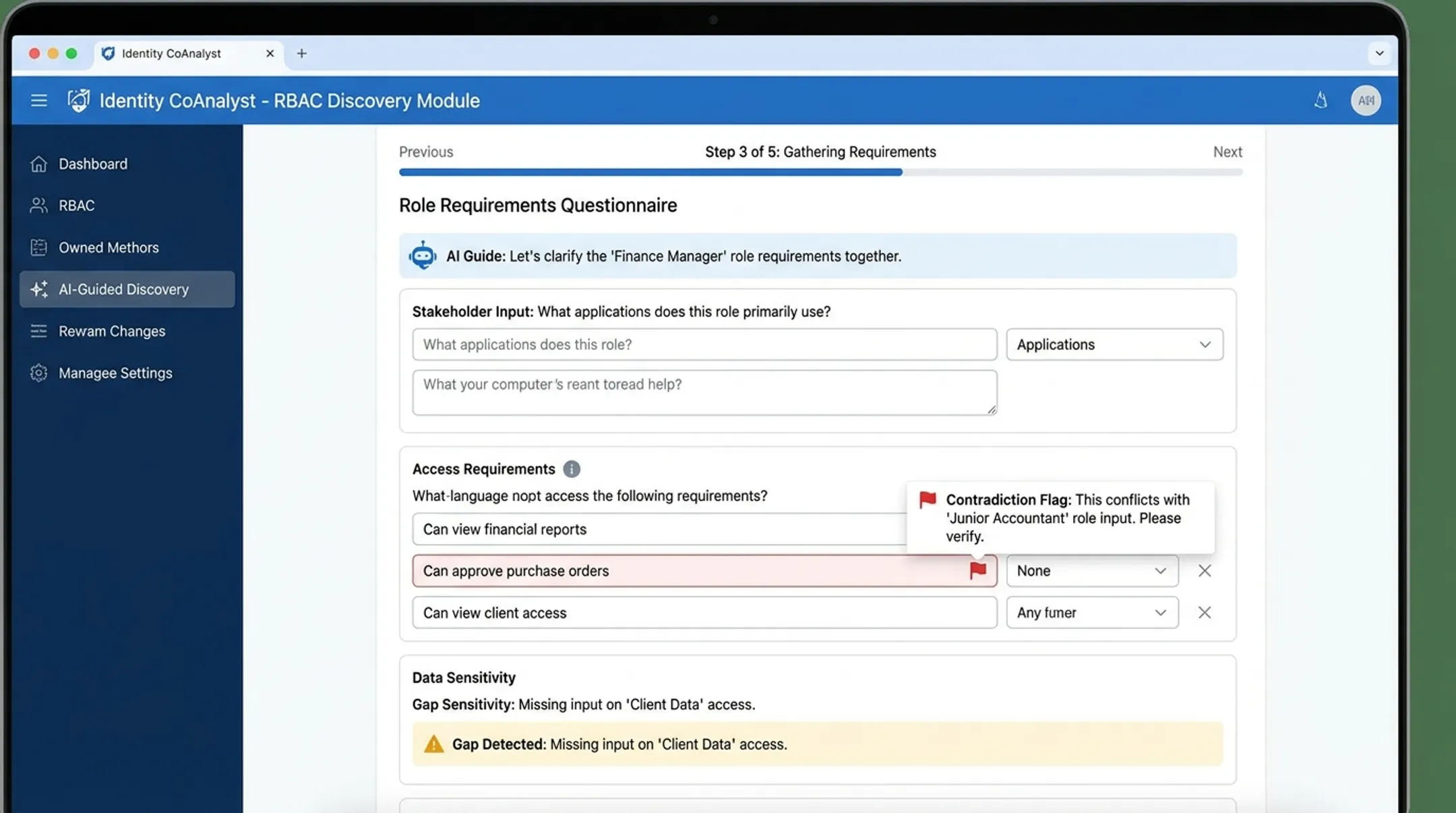

Platforms like Identity CoAnalyst address this bottleneck with AI-guided, vendor-agnostic questionnaires. They structure plain-language stakeholder input, flag gaps or contradictions, and produce traceable requirements documentation before configuration starts.
Step 3: Design Roles Around Business Functions
Define candidate roles from repeatable job responsibilities and business processes, not from individual users or every minor departmental variation. Separate birthright access (what everyone gets on day one) from requestable, elevated, temporary, and privileged access, so routine access never gets mixed with high-risk permissions in the same bundle.
Every role needs:
- A clear business name and purpose
- A named owner
- Eligibility criteria
- Included and excluded permissions
- An approval path and review requirement
Role hierarchies help when inheritance reflects a genuine, stable relationship. CTI's own SailPoint consulting work offers a real example: a large retail migration involving 30,000+ users landed on a 1,400-role RBAC model. The design avoided senior roles inheriting more access than their actual responsibilities required.
That number sounds large until you consider the alternative: thousands of unmanaged direct grants across the same population.
Step 4: Map, Test, Approve, and Deploy in Phases
Create role-permission and user-role mappings, then have business owners confirm every permission supports a documented task. Define static and dynamic SoD constraints for risky combinations like request-and-approve or create-and-pay.
Test both allow and deny scenarios with real user types:
- Movers and contractors
- Managers and privileged users
- Users holding multiple roles at once
NIST's guidance on system testing supports developmental testing of security functions before broader implementation, and RBAC is no exception.
Pilot with one application or business group. Monitor issues, refine the design, and expand in controlled phases rather than flipping the switch enterprise-wide.
Once approved, connect roles to IAM/IGA lifecycle workflows so joiner, mover, leaver, request, certification, and revocation events all update access automatically and consistently.
When RBAC Is the Right Fit and What to Prepare
RBAC works best when access requirements map to stable job functions, repeatable processes, and clear ownership. When those conditions don't hold, roles start multiplying to cover exceptions.

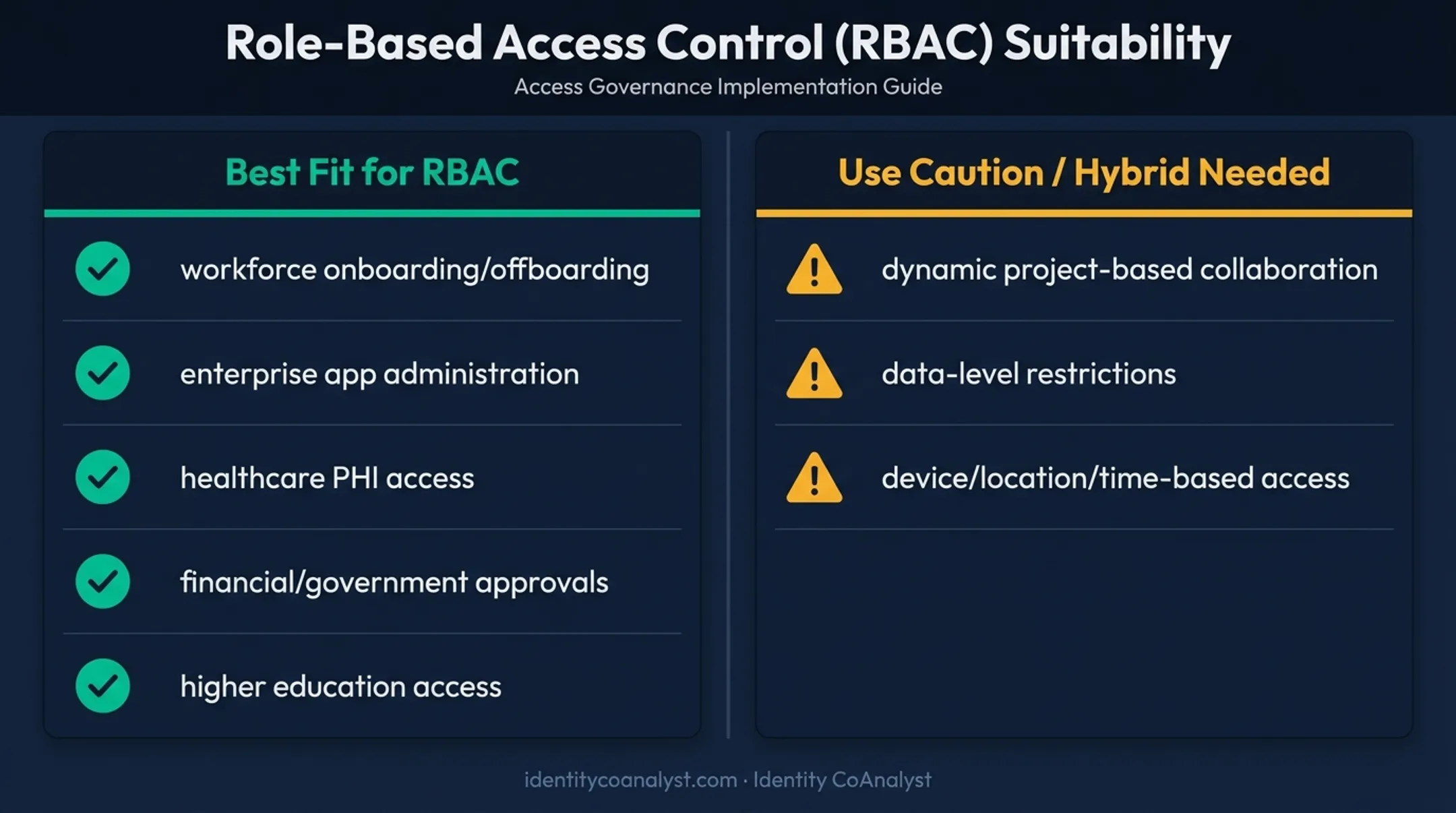

Typical Situations Where RBAC Is Appropriate
- Workforce onboarding and offboarding
- Enterprise applications and cloud administration
- Healthcare PHI access limited to job duties under the HHS minimum necessary standard
- Financial and government approvals needing separation of duties
- Higher education and third-party access with defined responsibilities
RBAC standardizes access across departments and gives auditors a straightforward answer to "who can access what, and why."
Situations Requiring Caution or a Hybrid Model
RBAC alone gets rigid fast when access depends on:
- Highly dynamic, project-based collaboration
- Data-level restrictions rather than system-level ones
- Device posture, location, time, or shifting relationships
Even when RBAC fits, it still isn't a substitute for authentication, MFA, privileged access management, logging, data classification, or network controls. RBAC decides who gets what role; it doesn't replace the controls that decide how that access is used.
Preparation Requirements
Before role design begins, confirm you have:
- Authoritative identity data and HR event feeds
- A complete application inventory and permission definitions
- Ownership assignments and approval workflows
- Audit and compliance requirements documented
Also establish operating standards before design starts:
- Naming conventions and role versioning
- Documentation standards
- Exception handling rules
- A process for retiring unused roles
Key Parameters That Affect RBAC Results
RBAC quality depends less on how many roles you create and more on how accurately those roles reflect real work, real risk, and real governance discipline.
Role Design: Granularity, Mapping, and Hierarchy
Broad roles violate least privilege. Overly narrow roles cause role explosion and administrative overhead nobody signed up for. Choose permission boundaries based on business tasks and risk. A hospital billing clerk and a finance approver need different boundaries even if both touch the same billing system.
Business roles, application roles, entitlement bundles, groups, and raw permissions are not the same thing. Technical groups should map to an approved business requirement, not become the default definition of a role by accident.
Parent-child inheritance reduces duplication when the relationship is genuine and stable. It also silently expands access when nobody tests it. Always test inherited permissions, nested groups, and application mappings before deploying changes to a parent role.
Least Privilege, SoD, and Lifecycle Controls
Define the minimum access a task requires, then block incompatible combinations:
- Static SoD blocks conflicting role assignments outright, such as "Purchase Requestor" and "Purchase Approver"
- Dynamic SoD limits simultaneous activation, allowing a user to hold conflicting roles but never use both at once
Role eligibility should respond automatically to hiring, transfers, leave, termination, and contractor end dates. Every exception should include:
- A hard time limit
- A named approver
- Documented business justification
- Automatic removal at expiry
A common pattern uses a 90-day exception cap with monthly recertification during that window. Revoke contractor access automatically the day after contract end.

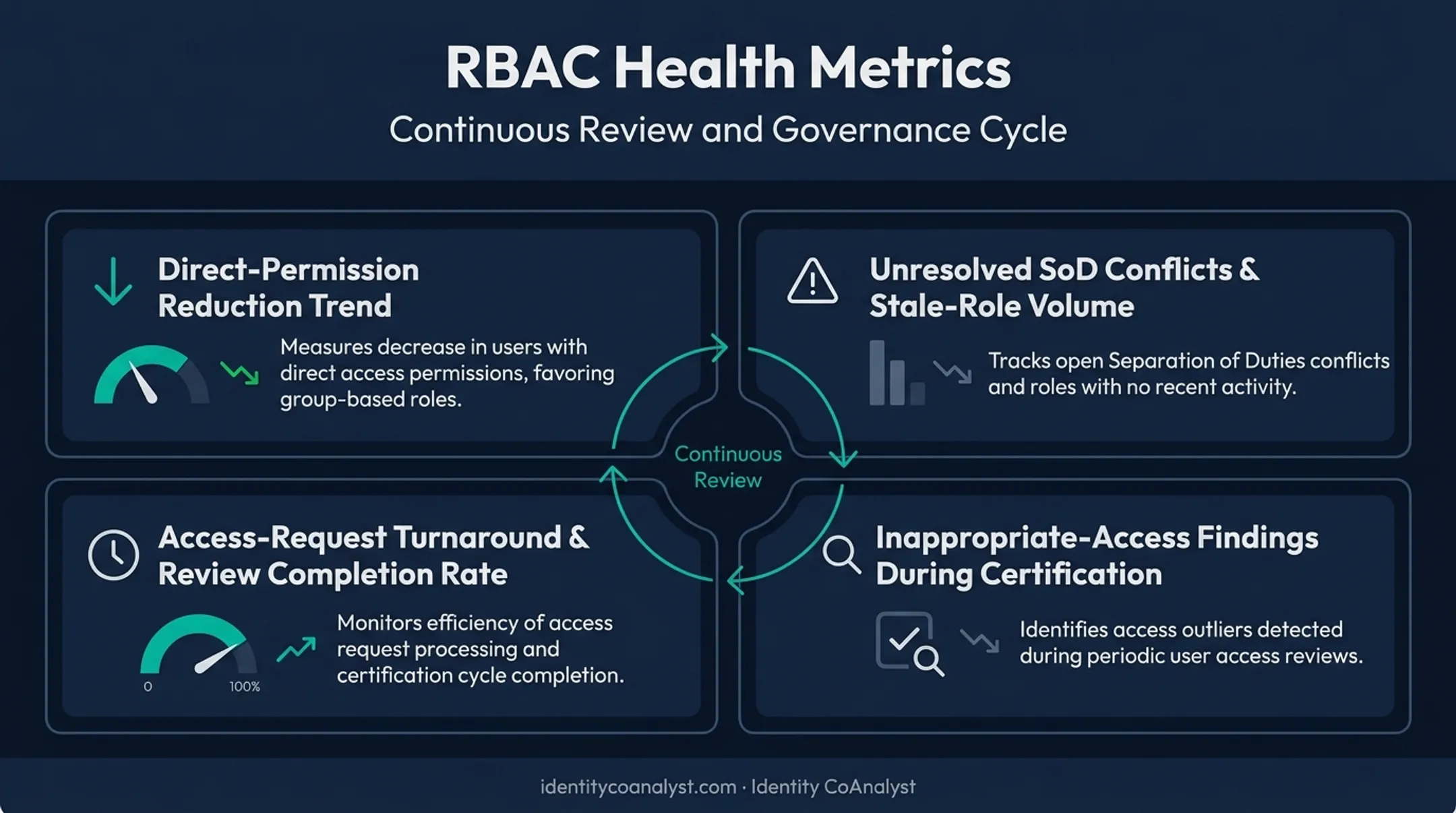

Measurement and Validation Criteria
Track indicators such as:
- Direct-permission reduction over time
- Unresolved SoD conflicts and stale-role volume
- Access-request turnaround and review completion rates
- Inappropriate-access findings during certification cycles
Gartner's guidance on RBAC frames periodic review and updates to roles and permissions as critical to both security and operational efficiency. Role design is not a one-time exercise.
Metrics should also show usability: can employees complete their jobs without filing unnecessary access requests?
Common Mistakes and Troubleshooting
Most RBAC failures start before the role model is ever built. Watch for these patterns:
- Skipping discovery and stakeholder validation. Incomplete application inventories or weak business input produce roles that look organized on paper but don't reflect real work.
- Copying existing access into new roles. This preserves privilege creep, orphaned access, and years-old exceptions instead of fixing them.
- Letting roles multiply unchecked. Consolidate duplicates, use hierarchy carefully, keep temporary access separate from permanent roles, and assign an owner responsible for cleanup.
- Failing to govern changes. Maintain a changelog, require approvals for role and permission changes, retest critical scenarios, and trigger a targeted access review after anything material shifts.
Even a solid role design still needs a clear path when access goes wrong.
When troubleshooting access denials, check in this order:
- Identity attributes and role eligibility
- Lifecycle status (is the user still active in that role?)
- Group synchronization and inherited permissions
- Application mappings
- Whether the action is intentionally outside the role's scope
When troubleshooting excessive access, trace effective permissions back through direct grants, nested groups, inherited roles, emergency access, and stale assignments. Remove the root cause. Adding a compensating role on top just creates another item to audit later.
Alternatives and Complementary Access Control Models
RBAC is usually the foundation of an authorization strategy, not the entire strategy. When roles can't express every relevant condition, pair RBAC with a complementary model.
Attribute-Based Access Control (ABAC)
ABAC evaluates user, resource, action, and environmental attributes—department, data sensitivity, device compliance, location, or time of day.
Prefer ABAC when decisions are highly dynamic or context-sensitive, such as restricting payroll access to business hours from a corporate network. The tradeoff is added policy design and troubleshooting complexity.
Policy-Based or Context-Aware Controls
Policy engines layer conditions on top of role-based decisions. That supports Zero Trust requirements without forcing every contextual variation into its own role.
Those controls depend on:
- Reliable attribute sources
- Clear policy ownership
- Logging and defined fallback behavior when context data is missing or stale

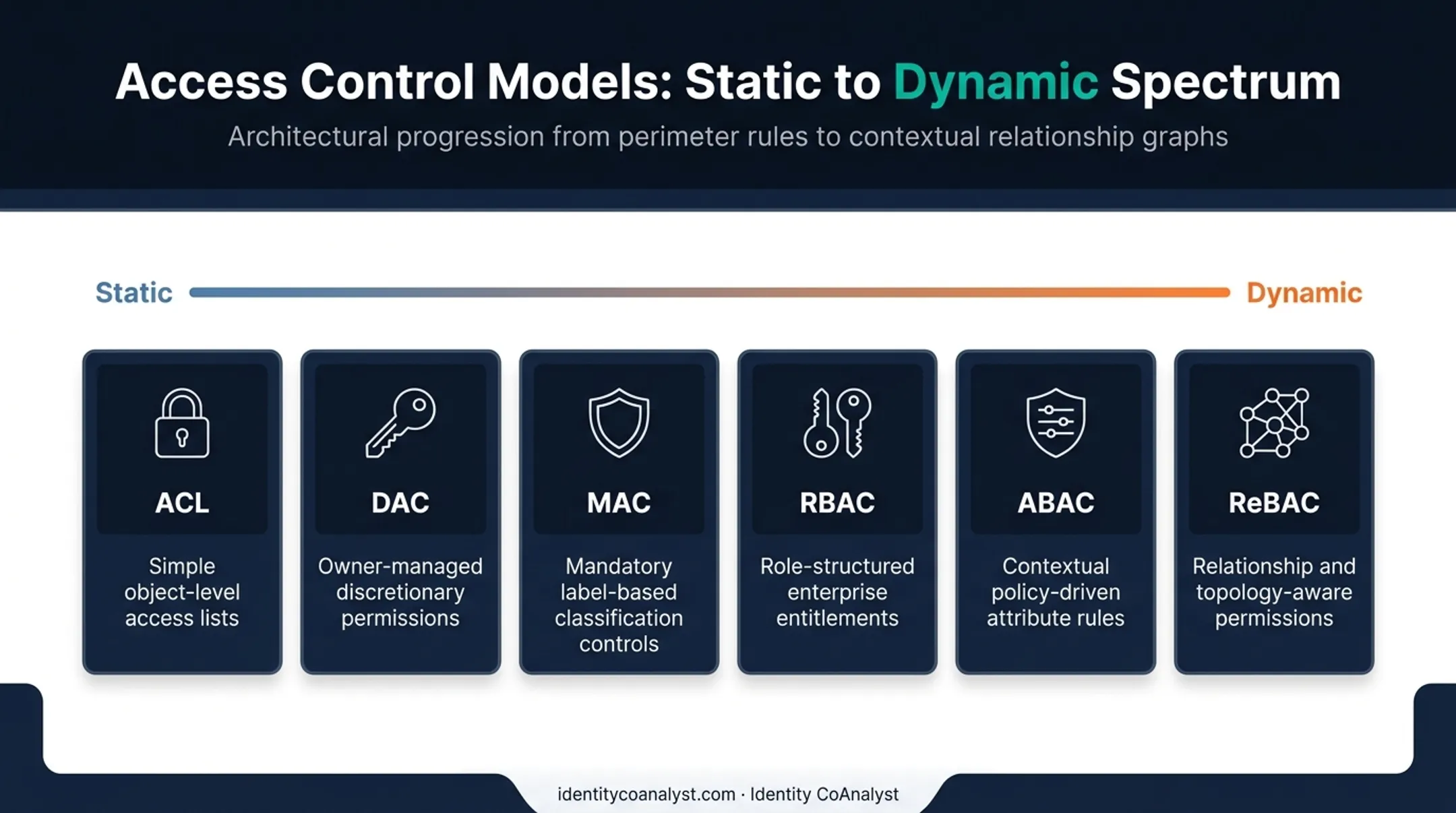

ACL, DAC, MAC, and ReBAC
| Model | Best fit | Tradeoff |
|---|---|---|
| ACL | Object-level, identity-specific grants | Doesn't scale as a governance layer alone |
| DAC | Owner-controlled sharing | Owner discretion can exceed policy without oversight |
| MAC | Centrally enforced classification | Rigid; no owner override |
| ReBAC | Relationship-based sharing (Google's Zanzibar is the reference implementation) | Strong for delegation, complex to govern at scale |
Use the simplest model that satisfies the requirement, and document how multiple models interact so you don't end up with contradictory access decisions across systems.
Conclusion
Successful RBAC implementation rests on a few non-negotiables:
- Accurate business requirements
- A complete permission inventory
- Clearly owned roles
- Explicit least-privilege and SoD controls
Skip any of those, and the model looks fine until an audit or an incident proves otherwise.
Ongoing operations matter just as much:
- Phased rollout
- Lifecycle automation
- Testing and monitoring
- Recurring access reviews
Roles and business responsibilities change constantly. A model that isn't revisited will drift from the organization it was built for.
Treat RBAC as a governed foundation you maintain over time. Add contextual or attribute-based controls where static job roles can't express the security decision you need to make.
Frequently Asked Questions
How do you design RBAC?
Start by defining scope, then discover permissions and business processes before drafting roles. Design roles around business functions with clear ownership, and enforce least privilege and separation of duties (SoD). Test thoroughly, then deploy in phases with ongoing review built in.
What is the structure of the RBAC architecture?
RBAC architecture consists of users, roles, permissions, and sessions, connected through user-role and permission-role assignments. Role hierarchies and constraints refine the model, and sessions activate a subset of a user's assigned roles during authorization.
What are the three primary rules for RBAC?
Role assignment: a user must hold an active role to exercise permissions. Role authorization: the user must be authorized for that role. Permission authorization: permissions flow only through authorized roles, never directly to users.
When to use ABAC vs. RBAC?
RBAC fits stable job functions with predictable access needs. ABAC handles dynamic decisions involving user, resource, action, or environmental attributes like time and location. Most mature programs run both together.
How does RBAC enforce least privilege?
Roles should contain only the permissions required for defined tasks, no more. SoD constraints, approval workflows, recurring access reviews, and removal of stale or excessive access all keep that boundary intact over time.
What are some examples of role-based access control?
Common examples include nurses versus admissions staff in a hospital, and finance requesters versus finance approvers. The same pattern shows up with developers versus production administrators, and analysts limited to read-only data access.
