Introduction
RBAC rarely fails because the concept is confusing. It fails when organizations build roles without first understanding business responsibilities, permission scope, or ongoing governance.
The result looks familiar: hundreds of overlapping roles, no clear owner for any of them, and access reviews nobody trusts.
A 2025 global IAM survey from KuppingerCole of more than 1,000 identity professionals confirms the pattern. Role-management complexity and stakeholder misalignment still rank among the top IAM challenges, more than two decades after RBAC became a formal standard.
This article walks through the full RBAC design lifecycle: permission discovery, role modeling, enforcement, governance, and the common pitfalls that derail otherwise well-intentioned programs. The goal is a model that supports least privilege, clear authorization decisions, scalable administration, and controlled adaptation as your organization changes.
Key Takeaways
- Design from permissions and business processes, not job titles or existing access.
- Separation-of-duties conflicts need enforcement at assignment time, not after the fact.
- Role explosion is a design failure, not an inevitable side effect of growth.
- Joiner-mover-leaver automation keeps roles accurate as responsibilities shift.
- Hybrid models (RBAC plus ABAC) handle context that roles alone can't capture.
RBAC Foundations: Users, Roles, Permissions, and Authorization
Role-based access control is an authorization model. Users, or other identities like service accounts, receive permissions indirectly through roles assigned to them.
This is distinct from authentication, which only verifies who someone is. Authorization decides what they're allowed to do once verified.
The National Institute of Standards and Technology formalized RBAC as ANSI/INCITS 359-2004, later revised in 2012, defining five core data elements: users, roles, objects, operations, and permissions.
How the Pieces Fit Together
- Users are assigned to one or more roles, temporarily or permanently.
- Roles group permissions around a business responsibility.
- Permissions describe an action on a resource, such as create, view, modify, approve, or delete.
- Sessions activate a subset of a user's assigned roles for a given period of work.
An Accounts Payable Processor role, for example, might include permissions to create and update invoices, but it should never include approval permissions. That distinction between a role and a permission is where a lot of design mistakes start.
Three Rules That Govern Every Access Decision
NIST's role engineering research describes three primary rules that determine whether a user can exercise a permission:
- Role assignment: a user can access a permission only if they've been assigned a role.
- Role authorization: a user's active role must be authorized for that specific user.
- Permission authorization: the permission itself must be authorized for the active role.
These three rules are how NIST's role engineering guidance turns abstract role theory into a real access decision, such as opening a file or approving a payment.
Least privilege and separation of duties are enforced through these rules. Payment creation and payment approval, for instance, should sit in separate roles that no single user holds simultaneously—so no one person can misuse the system alone.
Designing RBAC from Permissions to Roles
Start with permissions, not job titles. Job titles change constantly and vary across departments. Permissions map to what people actually need to do, which is far more stable.

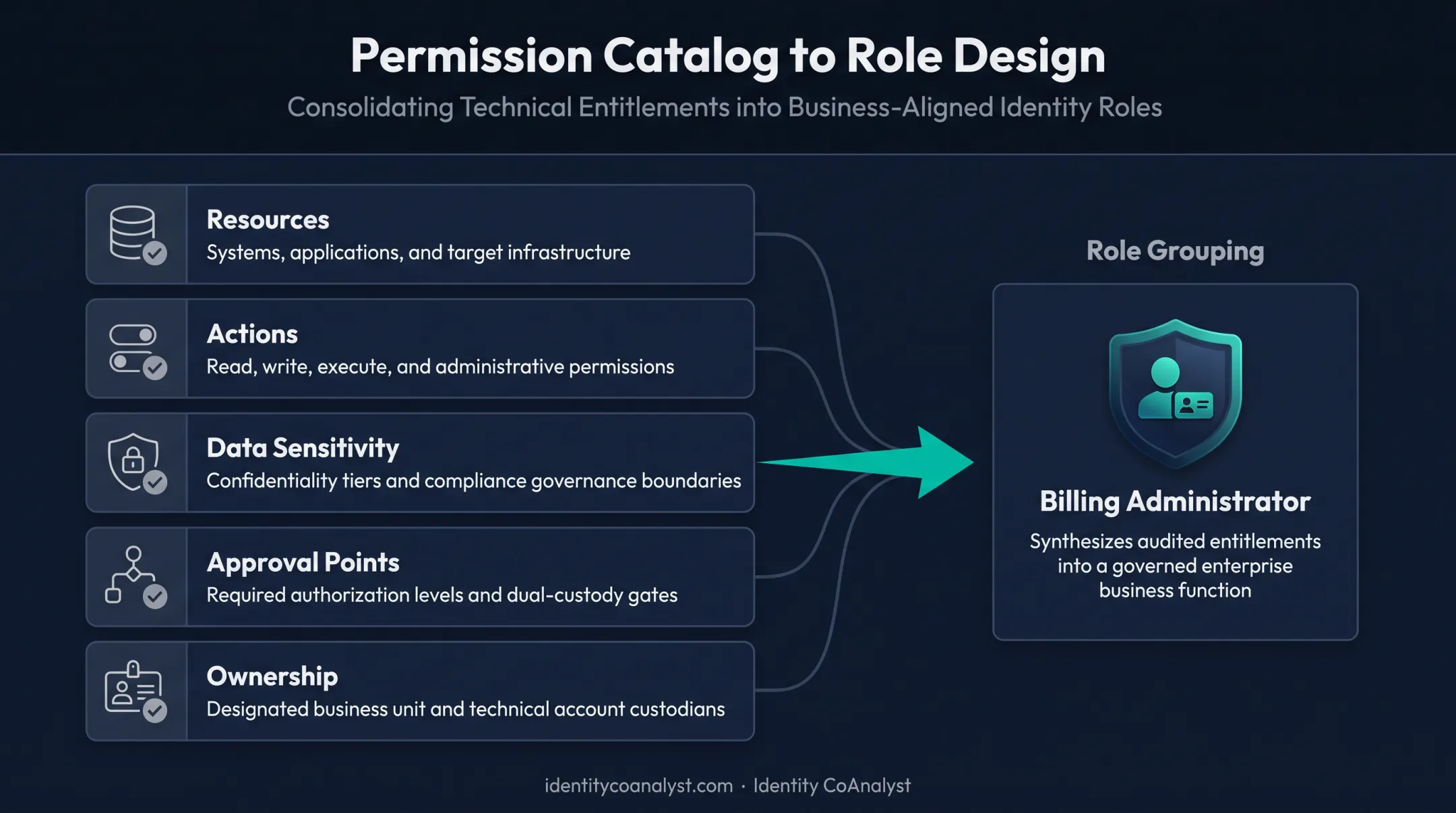

Build a Permission Catalog First
Before you design a single role, inventory:
- Resources — applications, systems, data stores, files, and services
- Actions available on each resource, using consistent verbs (create, read, update, approve, delete)
- Data sensitivity and risk classification for each permission
- Approval points and irreversible or high-risk operations
- Ownership — who's accountable for each permission's existence
Once cataloged, group stable, related permissions into business-aligned roles. A Billing Administrator role should reflect a genuine, recurring responsibility, not one person's accumulated access history or a temporary project need.
Separate Role From Scope
Don't create a new role for every business unit variation. Instead, separate the role definition from the scope it applies to.
A Billing Administrator role can be assigned within a specific region, tenant, or business unit without needing a dozen near-identical roles called "Billing Admin - East," "Billing Admin - West," and so on.
Role hierarchies can help here, but inheritance is risky when it's undocumented. Require explicit documentation of what a child role inherits from its parent, and periodically review the effective access that inheritance produces.
Finally, validate proposed roles with business owners, application owners, security, and compliance, not just spreadsheets. Walk them through realistic access scenarios: "Can this role approve its own request?" "What happens if this person changes departments?" Spreadsheets don't catch that kind of thing. People do.
RBAC Best Practices for Secure, Scalable Design
Good RBAC design rests on a few disciplined habits, applied consistently rather than occasionally.
Grant the Minimum, Document Everything
Apply least privilege by granting only what's required for a defined responsibility. Distinguish standard birthright access (what everyone in a role gets automatically) from elevated or just-in-time access that requires separate approval.
Every role should have documentation covering:
- Purpose and business owner
- Permissions and scope
- Eligibility criteria and approval path
- Expiration rules and review frequency
Centralize Enforcement
APIs, backend services, admin interfaces, and user-facing applications all need to make the same authorization decision consistently. When your API enforces one rule and your admin console enforces another, authorization becomes inconsistent and untrustworthy. Route authorization through a consistent policy or identity governance layer.
Build in Separation of Duties
Identify conflicting permission pairs before they become a problem. A common example: Purchase Order Creation and Purchase Order Approval should never sit with the same user.
Under SOX, this kind of conflict is typically a high-risk control. Enforce it as a hard block at role-assignment time. Any exception should require CFO-level sign-off and an audit log entry.

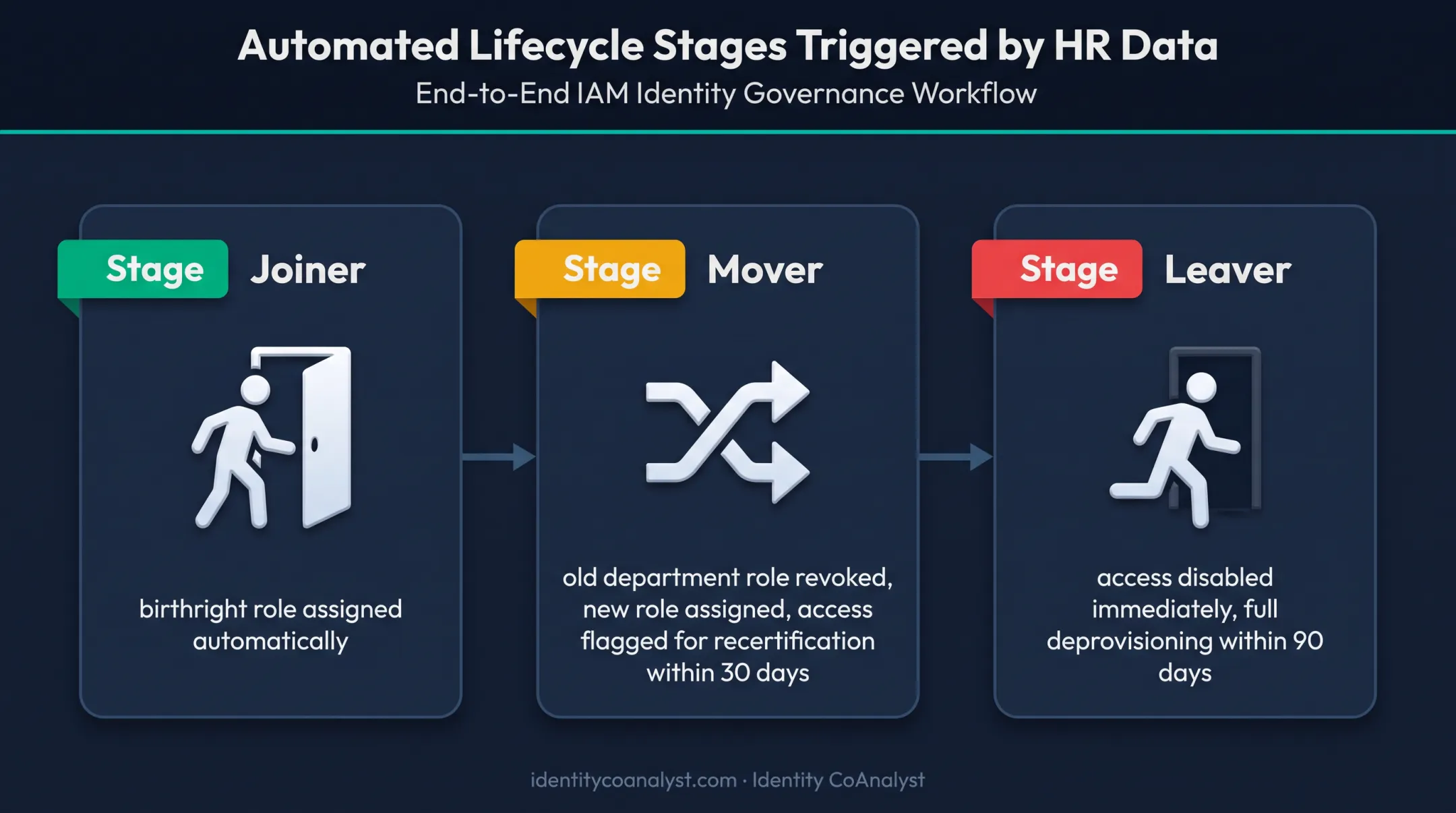

Automate Joiner-Mover-Leaver
Role assignments should respond to authoritative HR data, not manual tickets.
When a manager records a department change:
- Revoke the old department role and assign the new one automatically
- Flag existing access for recertification by the new manager within a defined window, typically 30 days
When someone leaves, disable access immediately. Fully deprovision accounts on a fixed schedule, such as 90 days out.
Before rollout, define success criteria: denied-access tests, effective-permission reviews, provisioning accuracy, and audit evidence. If you can't measure it, you can't prove it's working.
Common RBAC Pitfalls and How to Avoid Them
Most RBAC failures trace back to a handful of repeatable mistakes: too many roles, too much privilege in each one, owners who disappear, and exceptions that never expire.
Role Explosion
Creating a new role for every department, location, or one-off exception produces hundreds, sometimes thousands, of overlapping roles with no clear owner.
One well-known consulting engagement replaced a legacy identity manager with a 1,400-role RBAC model spanning 30,000-plus users. Getting that structure right required scope, hierarchy, and entitlement bundles—not a fresh role for every variation.
To prevent role explosion:
- Design from permissions first, not from exceptions
- Use scope to handle regional or departmental variation
- Assign clear ownership to every role
- Retire obsolete roles on a schedule, not "someday"
Excessive Permission Aggregation
Broad grants like "manage all," plus anything inherited through role hierarchies, are where quiet privilege creep hides. If a role can do more than the job needs, it is already over-privileged.
To keep aggregation in check:
- Prefer task-level permissions over blanket "manage" rights
- Review inherited rights whenever you nest or compose roles
- Test each role against the actual job function before go-live
- Reject new entitlements that duplicate an existing, narrower grant
Orphaned and Stale Roles
Roles with no active owner, no recent usage, or permissions that fully overlap another role rarely stay harmless. Left alone, they become permanent back doors.
To clear orphaned and stale roles:
- Require a named business owner on every role
- Run usage analysis before each recertification cycle
- Merge or retire roles that duplicate another role's entitlements
- Archive deprecated roles on a fixed schedule instead of leaving them enabled
Designing From Existing Access
Legacy access often reflects years of accumulated exceptions, not legitimate business need. Mining current assignments can seed role candidates, but "what people currently have" is not the same as "what people should have."
To avoid cloning legacy risk:
- Start from job functions and required outcomes, not existing group membership
- Treat mined access as hypotheses to validate, not roles to publish
- Strip standing exceptions before you promote a pattern into a shared role
- Document the business justification for every entitlement you keep

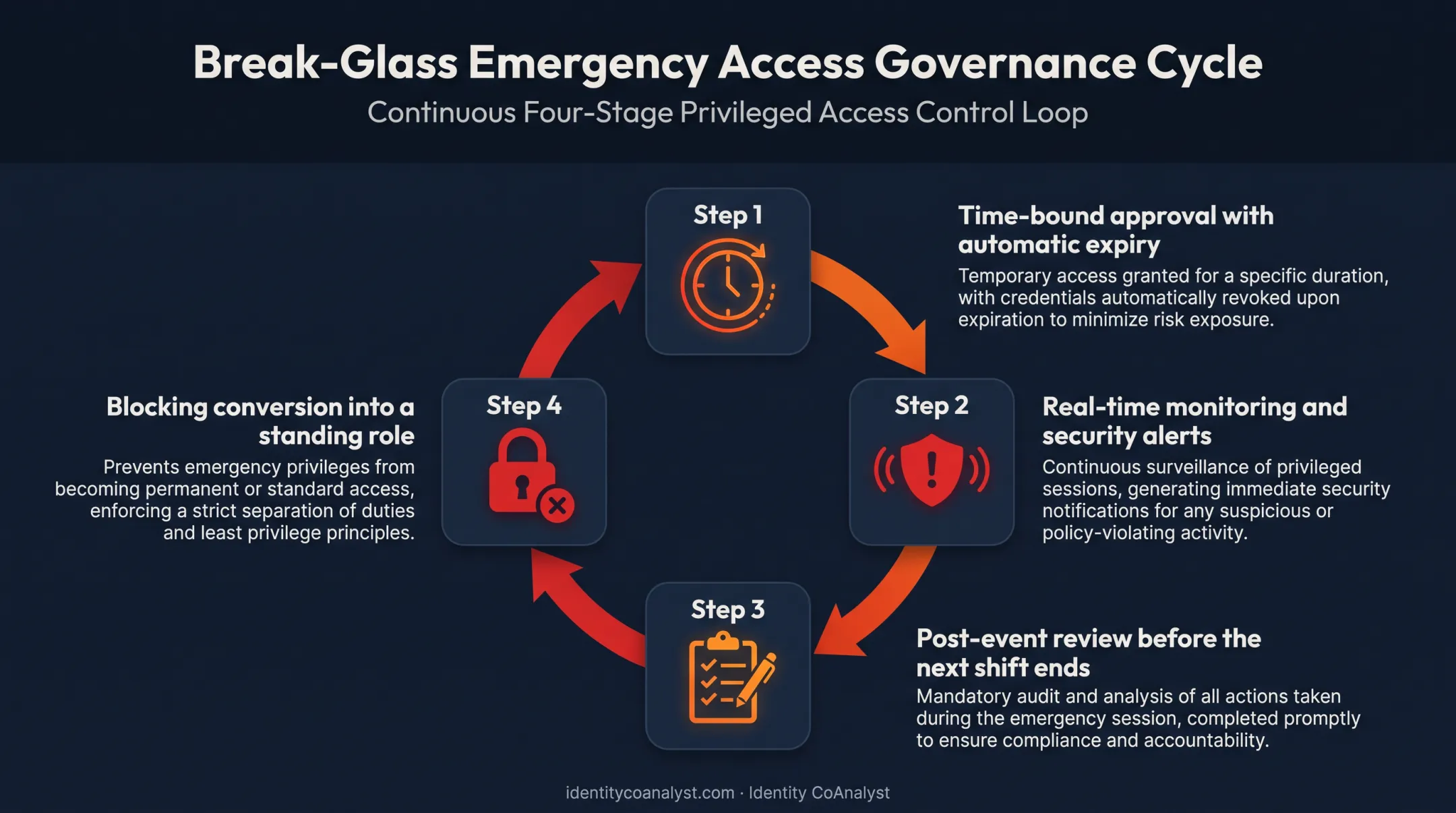

Emergency Access Turned Permanent
Break-glass and emergency accounts need explicit approval, expiration, monitoring, and post-event review. They should never quietly become permanent role additions.
A clinical break-glass account, for example, might stay limited to the hospital network, require multi-factor authentication, and trigger review within four hours of use.
To keep emergency access exceptional:
- Issue time-bound approval with an automatic expiry
- Monitor every use and alert security in real time
- Complete a post-event review before the next shift ends
- Block conversion of break-glass rights into standing roles
Real-world consequence: The GAO's 2017 audit of the IRS found the agency did not always limit unnecessary system access or segregate incompatible duties—weak RBAC governance and poor separation of duties create real compliance exposure.
Implementing and Governing RBAC Across the Enterprise
A phased rollout beats a big-bang deployment almost every time. The sequence below keeps scope controlled while you prove the model before scaling.
A Practical Implementation Sequence
- Define objectives and scope for the first wave
- Identify stakeholders across business, security, and compliance
- Catalog resources and permissions in scope
- Design roles and model constraints
- Pilot with representative systems
- Validate outcomes against defined success criteria
- Expand in controlled waves
Requirements discovery is where most programs lose time. It needs to capture access scenarios, data classifications, approval responsibilities, exceptions, integrations, lifecycle events, and contradictions between what different stakeholders say they need.
Traditional workshop-and-spreadsheet discovery often stretches 8 to 16 weeks. Inconsistent stakeholder answers rarely surface until implementation is already underway.
This is where a platform like Identity CoAnalyst fits: a vendor-agnostic discovery layer that consulting teams use before configuring SailPoint or other IGA tools. It runs guided, asynchronous questionnaires with business stakeholders, application owners, and security teams.
The platform automatically flags conflicting answers and generates structured, implementation-ready requirements documentation. That work sits upstream of governance and provisioning on whichever platform ultimately enforces the roles.
Ongoing Governance
Once live, RBAC needs continuous care:
- Access certifications on a defined cadence: annual for standard access, quarterly for privileged access
- Assigned owners for roles, permissions, applications, and SoD policies, with clear rules for who can propose, approve, or retire each one
- Metrics tracking stale-role reduction, review completion rates, provisioning accuracy, and exception aging
- Traceability from business requirement through permission, role, assignment, approval, and enforcement point
When RBAC Needs a Hybrid Access-Control Model
Roles express stable responsibilities well. They don't naturally capture changing context: device posture, location, time of day, transaction risk, or resource sensitivity.
| Model | Best suited for |
|---|---|
| RBAC | Stable, role-defined responsibilities |
| ACL | Simple, identity-based access lists |
| ABAC | Dynamic conditions — time, location, device, risk |
| ReBAC | Access based on relationships between entities |
NIST's guidance on attribute-based access control notes that layering attributes onto RBAC lets organizations keep a stable role structure while applying dynamic rules for changing conditions. That approach reduces pressure to create a new role for every contingency.

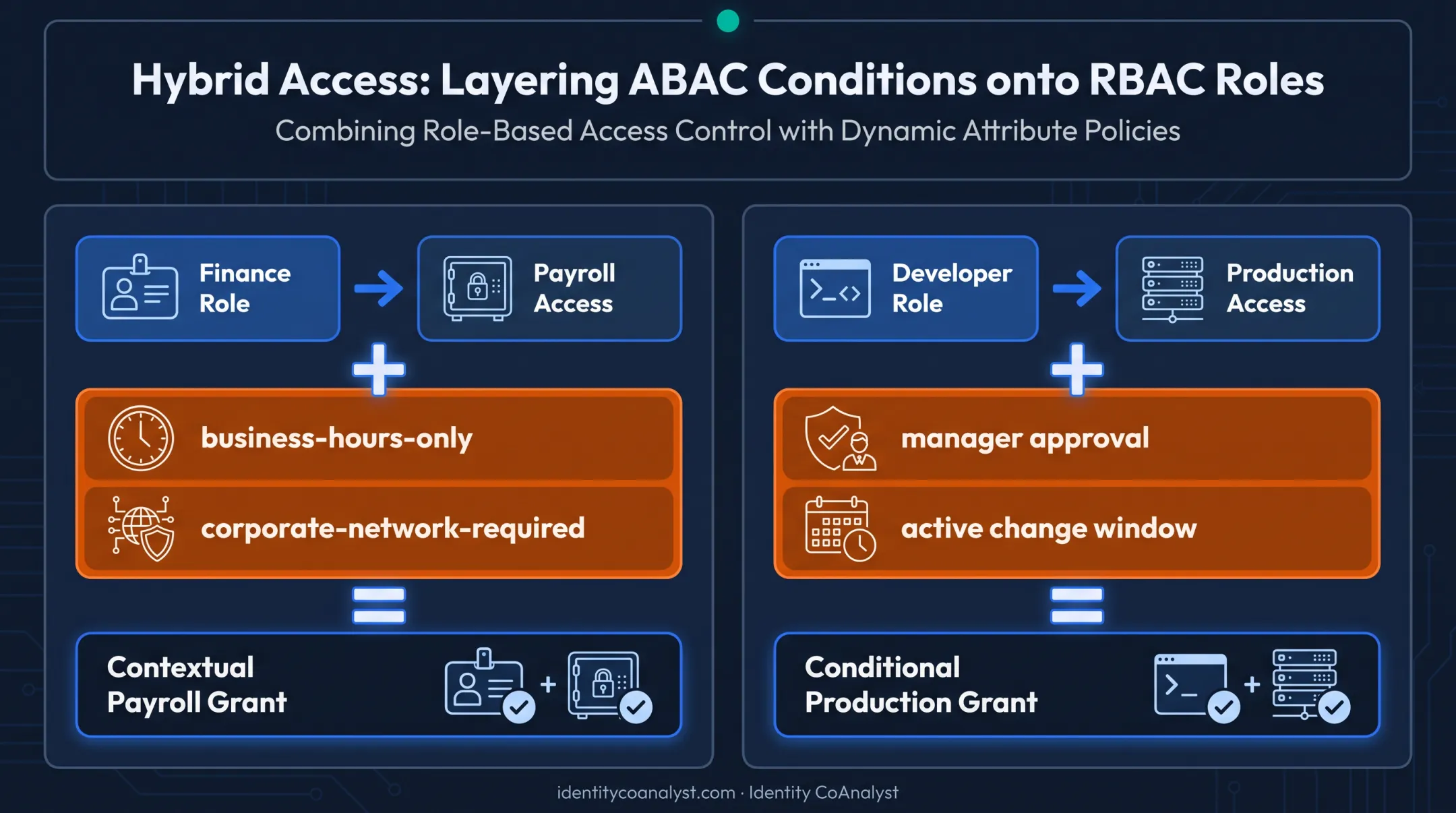

In practice, hybrid controls often look like this:
- A Finance role grants baseline payroll access, limited by policy to business hours and the corporate network
- Developers hold a production-access role contingent on approval and an active change window
Keep RBAC as the readable baseline. Document which decisions are role-based, which are contextual, and which system makes the final call.
Conclusion
Effective RBAC starts with explicit permissions and real business processes, not job titles or historical access. From there, stable roles get built with defined scope, constraints, ownership, and lifecycle rules attached from day one.
The practical order of operations:
- Define what people need to do
- Grant the minimum required access
- Prevent conflicting privileges
- Centralize enforcement
- Validate against real scenarios
- Govern the model continuously
Treat RBAC as an ongoing authorization discipline. It stays trustworthy only when accountable review stays attached to it.
Frequently Asked Questions
What are the 5 D's of access control?
The five D's (deter, detect, deny, delay, and defend) come from physical and perimeter security. Both aim to restrict unauthorized action, but RBAC uses its own framework of assignment, authorization, and review.
What are the three primary rules of RBAC?
Role assignment, role authorization, and permission authorization. Together they determine whether a specific user, in a specific active role, can exercise a specific permission at the moment they attempt it.
What is the difference between a role and a permission in RBAC?
A permission authorizes one specific action on one resource, like approving an invoice. A role groups related permissions around a responsibility and gets assigned to users, not the other way around.
How do you prevent role explosion?
Design from permissions and stable business responsibilities first, use scope instead of duplicate roles for regional variation, apply hierarchies carefully, and assign real ownership so obsolete roles actually get retired.
When should RBAC be combined with ABAC?
Combine them when authorization depends on conditions roles can't express alone: device posture, location, time of day, or transaction risk. RBAC handles the stable baseline; ABAC handles the moving parts.
